Wooden Finish Movable Partition Wall Framed Construction for Office

Brand Name:	AE
Model Number:	AE65
MOQ:	10 Square Meter
Price:	USD 79-108 per square meter
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001 SGS CANS

Product:

Movable Partition Wall

Base Board:

Customer-supplied Materials

Compliance:

Meeting Room

Thickness:

68CM

STC Rating:

42-56dB

Dimensions:

Customization (Height: Up To 4.5M, Width Per Panel: Up To 1.2M)

Name:

Movable Partition Wall

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

Framed Construction Movable Partition Wall

Wooden Finish Movable Partition Wall

Office Movable Partition Wall

Product Description

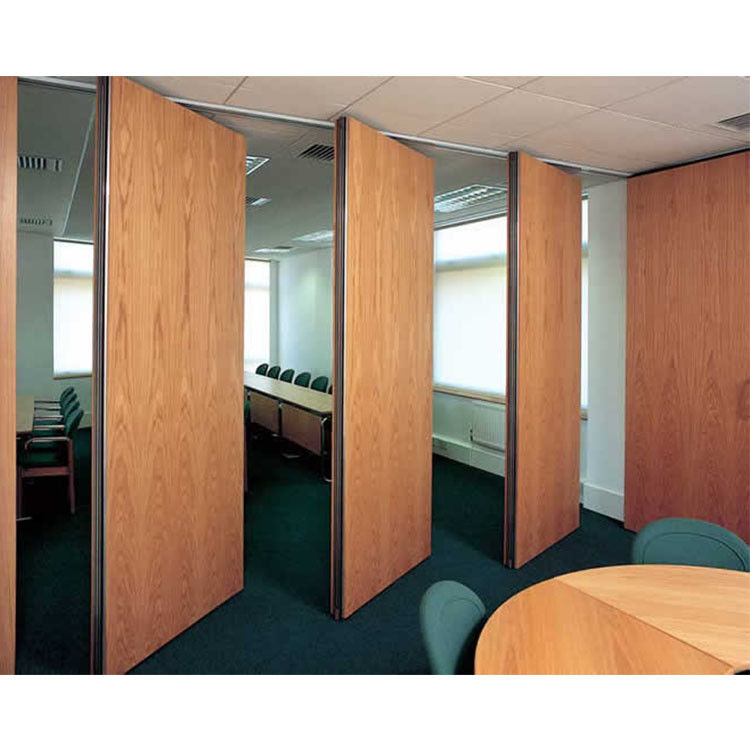

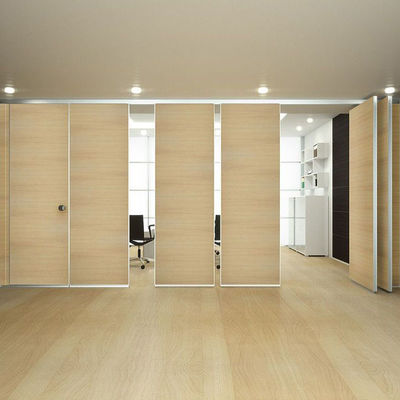

Wooden Finish Movable Partition Wall Framed Construction for Office

With sound insulating operable partition walls you can divide a bigger space quickly into individual- and team work, meeting and education suitable uninterrupted parts.

Quality Service:

1. We can follow your design to produce

2. Quick turnaround on free quotes (1-6 business days depending on project size)

3. Product specifications and value-engineered alternatives

4. Provide submittal drawings

5. On time deliveries

Roller Option & Feature:

1. Dupont POM roller

2. 304 stainless steel heavy duty roller with safety device & CNC machining

3. Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Option & Feature

1. Thickness: 68mm & 89mm & 105mm

2. Wide variety of acoustical and decorative finishes available

3. 6061-T6 profile and inside Q235 steel frame for superior durability

4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m,

Specification:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
	Dimensions in mm*			Design
Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight
