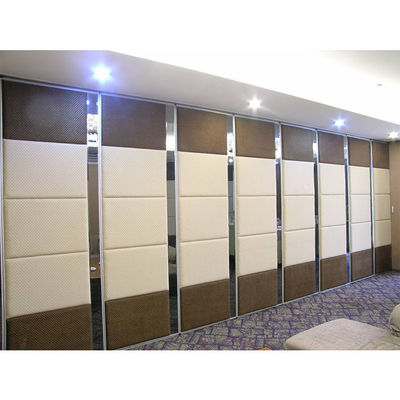

Fireproofing Movable Partition Walls Operable Partition Panel with Acoustical Fabric

Brand Name:	AE
Model Number:	AE85
MOQ:	10 Square Meter
Price:	USD90-108 per square meter
Packaging Details:	foam layer and hard cardboard with plywood case or steel pallet
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001 SGS CANS

Series:

Movable Partition Wall

Panel Material:

High Pressure Laminate Board

Compliance:

Exhibition Hall, Banquet Hall

Thickness、:

STC Rating:

42-56dB

Dimensions:

Customization (Height: Up To 6M, Width Per Panel: Up To 1.2M)

Name:

Movable Partition Wall

Supply Ability:

1000 SQUARE METER PER MONTH

Highlight:

Movable Partition Walls

Fireproofing Movable Partition Walls

Operable Partition Panel

Product Description

Fireproofing Movable Partition Walls Operable Partition Panel with Acoustical Fabric

AE Partition is able to offer customers throughout the world smart solutions for efficient room management.

Regardless of their characteristics and function, rooms can be effortlessly partitioned, made smaller, larger or reproportioned to suit individual requirements. Any area, from a small conference room to a large exhibition hall, can be optimally adapted to suit varying numbers of users.

What we offer:

1.Designing team for new products & solutions development.

2.The performance of the product is certified by SGS & ILAC-MRA

3.German Partition Technology & Global Professional Space Solutions

4.Quick follow up with quote

Roller Option & Feature:

1. Dupont POM roller

2. 304 stainless steel heavy duty roller with safety device & CNC machining

3. Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Option & Feature

1. Thickness: 68mm & 89mm & 105mm

2. Wide variety of acoustical and decorative finishes available

3. 6061-T6 profile and inside Q235 steel frame for superior durability

4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m,

Specification:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
	Dimensions in mm*			Design
Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight

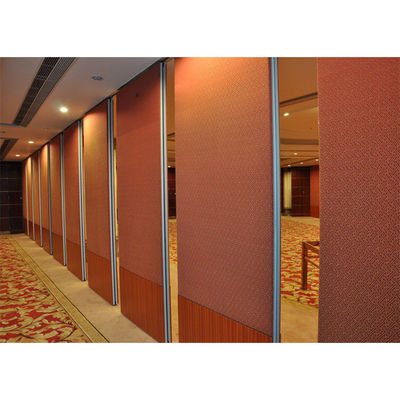

Fireproofing Movable Partition Walls Operable Partition Panel with Acoustical Fabric 0

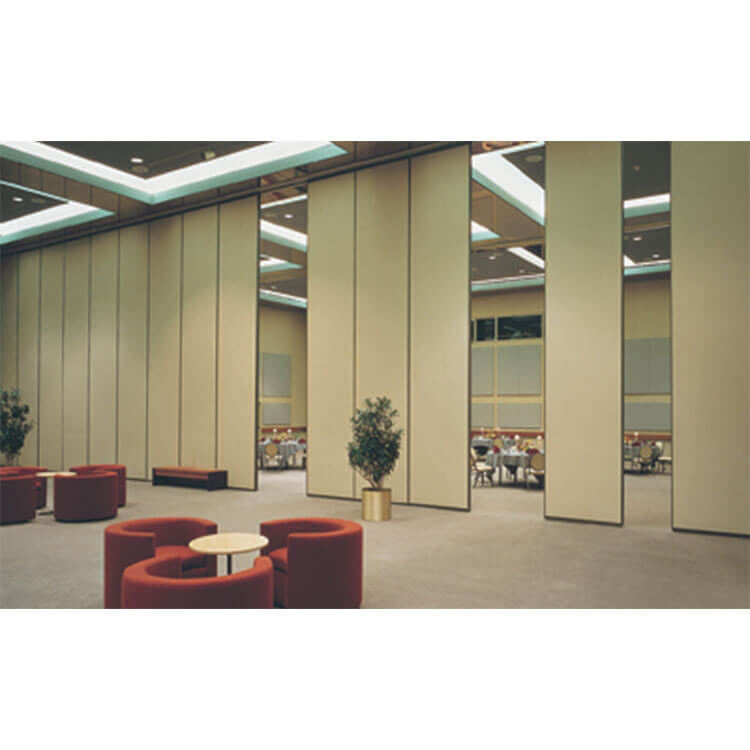

Fireproofing Movable Partition Walls Operable Partition Panel with Acoustical Fabric 1

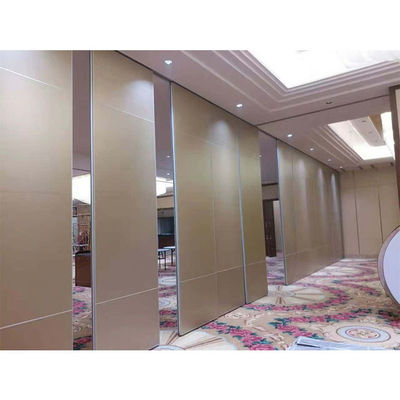

Fireproofing Movable Partition Walls Operable Partition Panel with Acoustical Fabric 2
