High Operable Acoustic Partition Wall with 6061-T6 Profile and Q235 Steel Frame for Custom Dimensions

High Operable Acoustic Partition Wall with 6061-T6 Profile and Q235 Steel Frame for Custom Dimensions

Brand Name: AE
Model Number: AE100
MOQ: 10 Square Meter
Price: USD90-135Per Square Meter
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 SQUARE METER PER MONTH
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001 SGS
Model:
Acoustic Partition Wall
Compliance:
Banquet Hall, Conference Room
Base Board:
Customer-supplied Materials
Dimensions:
Customization (Height: Up To 18M, Width Per Panel: Up To 1.2M)
Design:
OEM & ODM
Sound Insulation:
Max 56dB
Packaging Details:
foam layer and hard cardboard with plywood case or steel pallet
Highlight:

Exhibition Hall Acoustic Partition Wall

,

High Operable Acoustic Partition Wall

,

Acoustic Partition Wall System

Product Description
Exhibition Hall High Operable Acoustic Partition Wall System Without Floor Rail
展览厅高可操作性无地板轨道声学隔断墙系统
Our movable partitions are designed to adapt to your evolving needs, providing versatile space solutions perfect for any environment requiring flexible layout options.
The installed operable partitions are manually operated, consisting of multiple panels that require no special equipment or tools. The only necessary tool is the operation handle, used to lock and operate the top and bottom mechanical seals for panel sealing.
We Offer
  • Customized OEM and ODM services tailored to your specific requirements
  • Experience with important client collaboration projects
  • Product specifications and value engineering alternatives
  • Submission drawings provided
  • German partition technology for global professional space solutions
  • Highly competitive pricing
  • Rapid response and flexibility for construction-related issues
  • Quick follow-up on quotations
  • Controlled lead times for appropriate orders
Roller Options and Features
  • DuPont POM rollers
  • 304 stainless steel heavy-duty rollers with safety devices and CNC machining
  • Unique patented wheel surface and shape for easy operation of entire movable partitions
Panel Options and Features
  • Thickness: 68mm, 89mm & 105mm
  • Multiple acoustic and decorative finishes available
  • 6061-T6 profile with internal Q235 steel frame for exceptional durability
  • Upper and lower clamping lift mechanism seals with 800N force
  • Concave-convex profile magnetic seals with 40N/m magnetic attraction
Specifications
GEMMAN Partition Technology - Global Professional Space Solutions
Series Element Thickness Element Width* (min/max) Clear Height* (min/max) Frame Construction Panel Fixing Element Interconnection/Design Vertical Profile
AE65 68 600/1,250 2,000/4,500 Aluminum-Steel Free vibration Aluminum profile with magnetic strip and sealing lip
AE85 89 600/1,250 2,000/5,500 Aluminum-Steel Free vibration Aluminum profile with magnetic strip and sealing lip
AE100 105 600/1,250 2,000/18,000 Aluminum-Steel Free vibration Aluminum profile with magnetic strip and sealing lip
* Dimensions in mm. Wider widths may be possible depending on application. Tentative details about element height/width can only be confirmed after consultation with design department.
** Depends on sound insulation/weight
Technology: Weighted sound insulation value in Rw (dB) determined according to GB/T19889.3-2005: 52/56
Positive and friction locks for vertical element connection: Concave-convex profile shape, magnetic strip attraction of 40 N/m

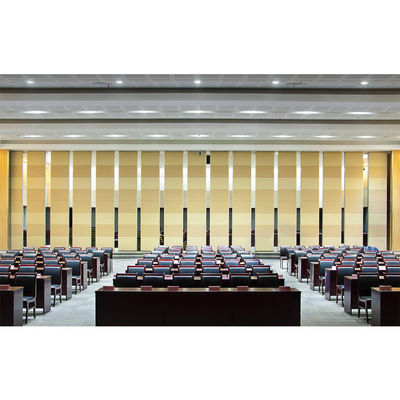

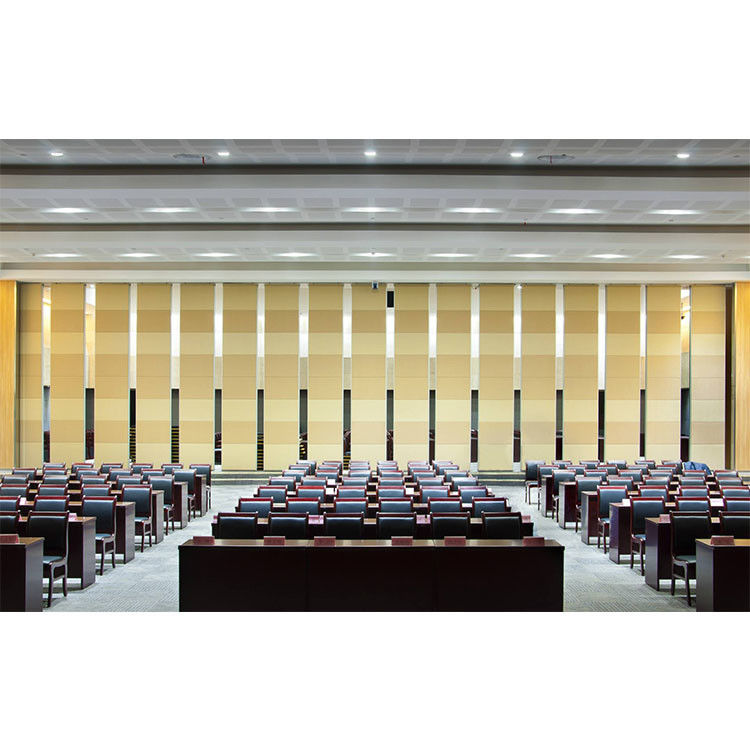

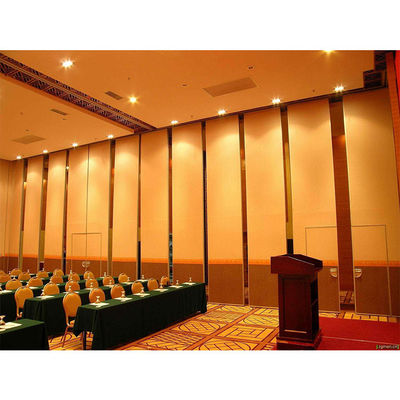

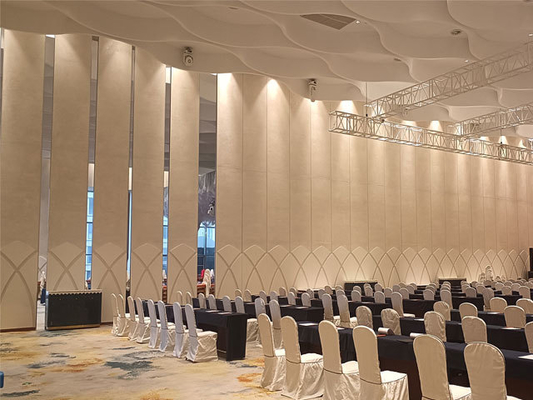

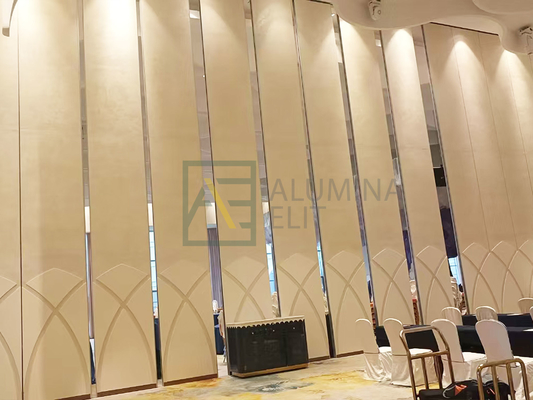

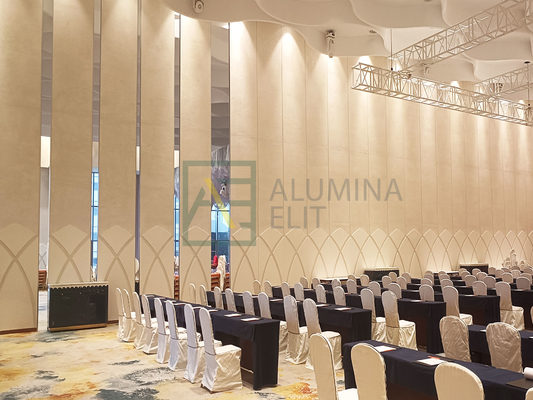

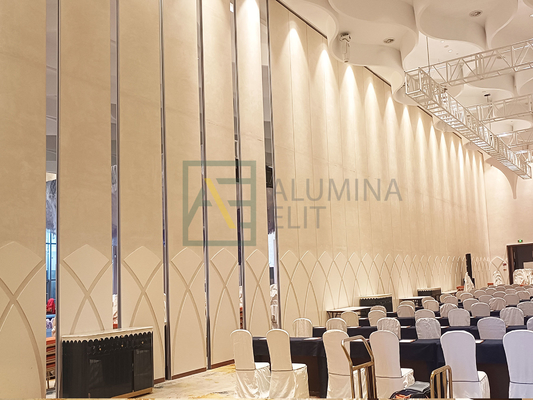

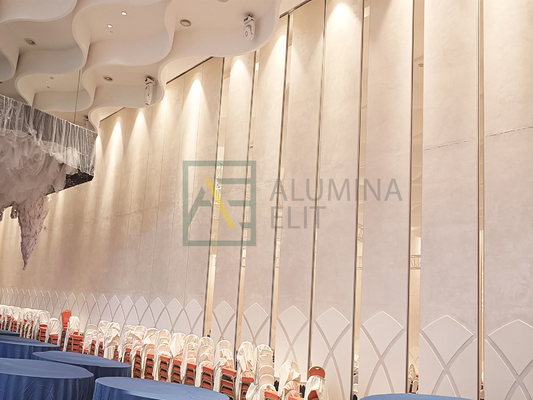

Project Images
High Operable Acoustic Partition Wall with 6061-T6 Profile and Q235 Steel Frame for Custom Dimensions 0
High Operable Acoustic Partition Wall with 6061-T6 Profile and Q235 Steel Frame for Custom Dimensions 1
