Sliding Acoustic Partition Wall System 68mm 89mm 105mm Thickness With Glass Finish
  • Name
  • Name

Sliding Acoustic Partition Wall System 68mm 89mm 105mm Thickness With Glass Finish

Brand Name: AE
Model Number: AE100
MOQ: 10 Square Meter
Price: USD90-135Per Square Meter
Packaging Details: foam layer and hard cardboard with plywood case or steel pallet
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001 SGS
Product:
Acoustic Partition Wall System
Application:
Hospital, Office Building
Base Board:
Customer-supplied Materials
Dimensions:
Customization (Height: Up To 18M, Width Per Panel: Up To 1.2M)
Design:
OEM & ODM
Sound Insulation:
Max 56dB
Supply Ability:
1000 SQUARE METER PER MONTH
Highlight:

Sliding Acoustic Partition Wall System

,

Acoustic Partition Wall System 68mm

,

Acoustic Partition Wall System 89mm

Product Description

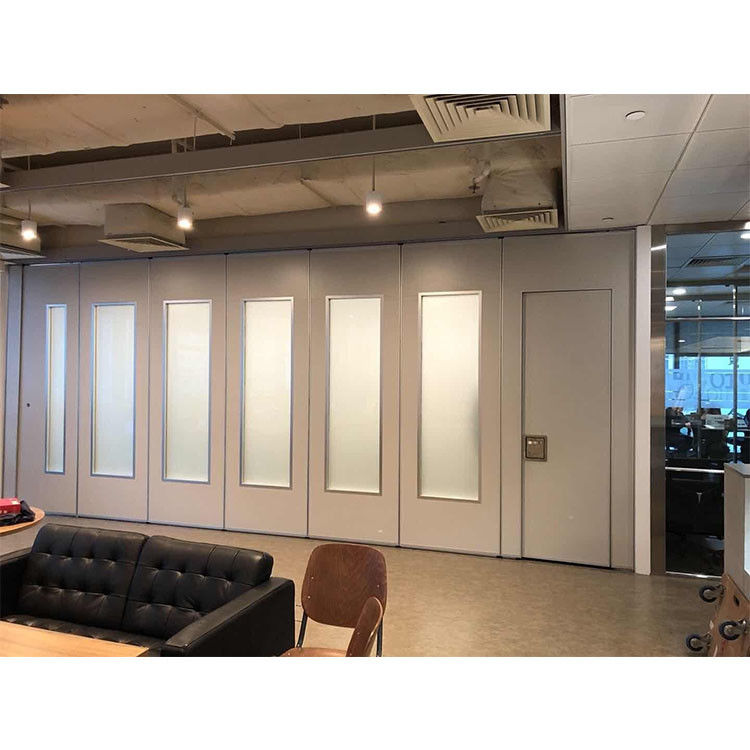

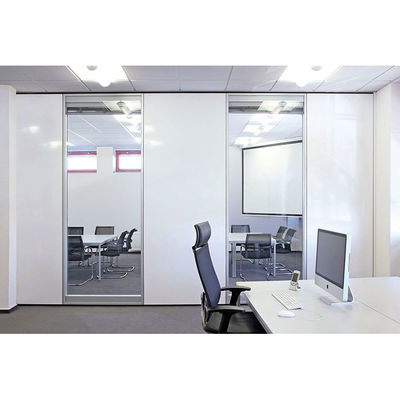

Sliding Acoustic Partition Wall Systems with Glass Finish for Global Solutions



Maximize your room’s potential with our modular movable partitions. Designed for easy assembly and disassembly, these folding partitions are perfect for temporary or permanent space solutions.



Our manually operated partition system is composed of several panels that are easy to move and position by hand. No special tools are required—simply use the operating handle to lock the panels and activate the mechanical seals for effective acoustic insulation.



What we offer:

1) German Partition Technology Global Professional Space Solutions

2) Site inspections

3) Experience in doing project with heavy customers

4 Highly competitive prices

5) Fast response and flexibility to construction related issues

6) Delivery time control for decent orders

7) Comprehensive OEM & ODM services tailored to your specific needs.

8) Product specifications and value-engineered alternatives

9) Provide submittal drawings



Roller Option & Feature

1. Dupont POM roller

2. 304 stainless steel heavy duty roller with safety device & CNC machining

3. Unique and patented wheel surface and shape make the whole movable partition easy to use



Panel Option & Feature

1. Thickness: 68mm & 89mm & 105mm

2. Wide variety of acoustical and decorative finishes available

3. 6061-T6 profile and inside Q235 steel frame for superior durability

4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.



SPECIFICATION:



GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
　 Dimensions in mm* Design
Series Element thickness Element width* (min./max.) Clear height* (min./max.) Framed construction Panel fixing Element interconnection/design of
the vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight





PROJECT:

Sliding Acoustic Partition Wall System 68mm 89mm 105mm Thickness With Glass Finish 0



Sliding Acoustic Partition Wall System 68mm 89mm 105mm Thickness With Glass Finish 1



ABOUT US:

Sliding Acoustic Partition Wall System 68mm 89mm 105mm Thickness With Glass Finish 2



Sliding Acoustic Partition Wall System 68mm 89mm 105mm Thickness With Glass Finish 3



Sliding Acoustic Partition Wall System 68mm 89mm 105mm Thickness With Glass Finish 4
