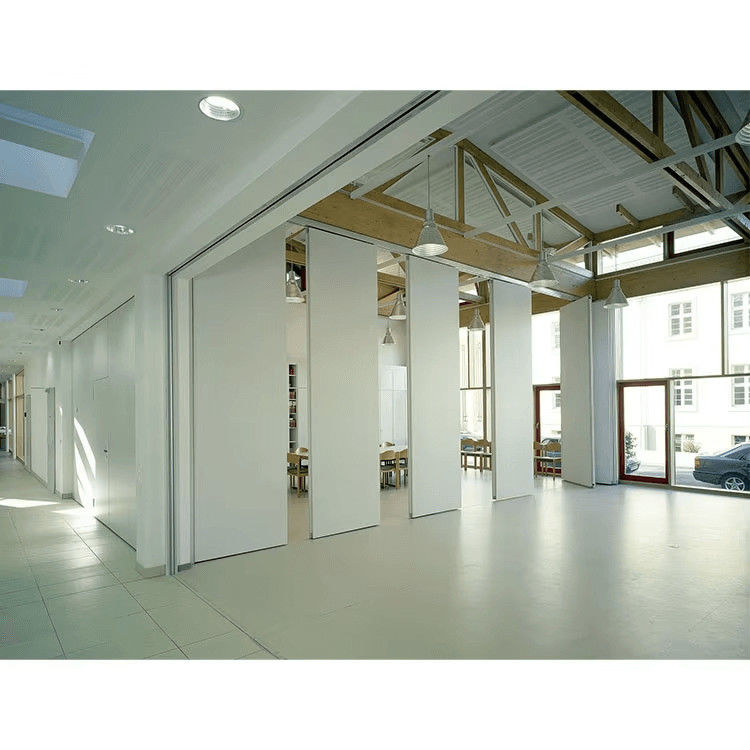

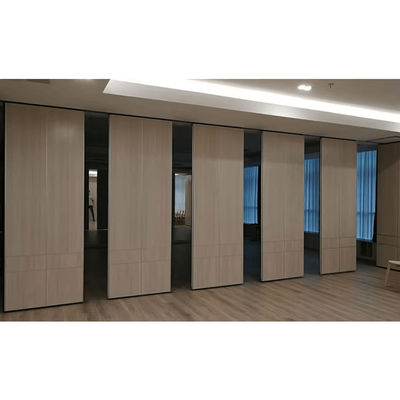

MDF Soundproof Wood Operable Partition Wall System For Conference Center

MDF Soundproof Wood Operable Partition Wall System For Conference Center

Brand Name: AE
Model Number: AE100
MOQ: 10 Square Meter
Price: USD 80-108 Per Square Meter
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SQUARE METER PER MONTH
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001 SGS
Product Name:
Acoustic Partition Walls,soundproof Partition Walls
Material:
Commercial Building And Residential House
Finishing Option:
Customer-supplied Materials
Height:
Up To18M
Design:
OEM & ODM
Sound Insulation:
Max 56dB
Packaging Details:
foam layer and hard cardboard with plywood case or steel pallet
Highlight:

Soundproof Operable Partition Walls

,

Wood Operable Partition Wall System

,

Conference Center Operable Partition Walls

Product Description
MDF Soundproof Wood Operable Partition Wall System For Conference Center


Roller Option & Feature


1. Dupont POM roller

2. 304 stainless steel heavy duty roller with safety device & CNC machining

3. Unique and patented wheel surface and shape make the whole movable partition easy to use


Panel Option & Feature


1. Thickness: 68mm & 89mm & 105mm

2. Wide variety of acoustical and decorative finishes available

3. 6061-T6 profile and inside Q235 steel frame for superior durability

4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.



SPECIFICATION:


GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
  Dimensions in mm* Design
Series Element thickness Element width* (min./max.) Clear height* (min./max.) Framed construction Panel fixing Element interconnection/design of
the vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight
