Straight Shape Double glazed Office Glass Partition Wall For Conference Room

Brand Name:	AE
Model Number:	Panoramic system EGG-100C
MOQ:	10 Square Meter
Price:	USD112-145Per Square Meter
Packaging Details:	foam layer and hard cardboard with plywood case
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, CHINA

Certification:

ISO9001 SGS

Product Name:

Sliding Partition Walls

Application:

Office,hotel,conference Room

Production Standard:

Basis On The Shop Drawings Which Approved By The Buyer

Profile Of Hanging Partition:

Aluminum Alloy, PVC Strip Sound Proof Partition Walls

Glass Of Hanging Partition:

Clear Tempered Glass, Frosted Glass, Acid Etched Glass

Design:

OEM & ODM

Sound Insulation:

30-42dB

Supply Ability:

1000 SQUARE METER PER MONTH

Highlight:

Conference Room Office Glass Partition Wall

Double glazed Office Glass Partition Wall

Straight Shape Office Glass Partition Wall

Product Description

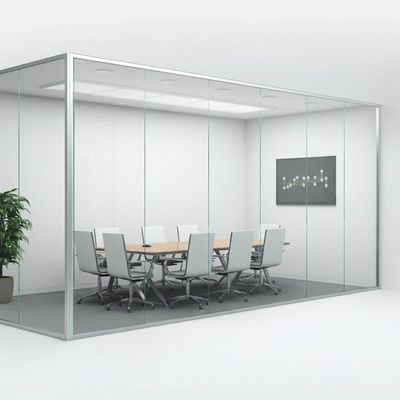

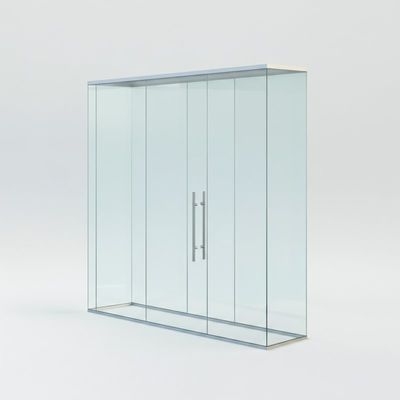

Straight Shape Double glazed Office Glass Partition Wall For Conference Room

The Double glazed glass office sliding partition walls can be dismantled , repeated use, the materials of the partition system is a green building materials and environment-friendly materials .

The door, windows, modules entity, the location of the sliding glass partition can be changed to suite your need, you can regroup and then use the materials after disassembly, component damage is not likely to occured
even after regrouping or disassembly, so the glass partition system can greatly reduce costs for any office relocation.The installation of the glass partition is faster than ordinary wall.

Features:

1) Interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.

2) To ensure additional friction connection, shall be integrated with magnetic strip.

3) Spring load retractable sound seal at the top and bottom element.

4) Face panel hung in acoustic free suspension, for improved sound insulation, easy redecoration of surface panels. Edges shall be protected with Aluminium profiles.

Specification:

Technical characieristics
WALL THICKNESS	108mm/90mm
HEIGHT	up to 3000mm
GRID WIDTH	up to 1200mm
WEIGHT	70-80kg/sq.m
ATTACHMENT TO BUILDING STRUCTURE	Concealed connections to the slab and walls; sealing along the perimeter; deviations ±10mm in height and width
GLASS THICKNESS	10mm/12mm tempered
VISIBILITY	Transparent, coloured, matte glass; between-the-glass blinds; foil, screen printing, enamel
DESCRIPTION	Glazed partition with an in-plane streamlined look. Made from aluminium, double-glazing structurally adhered to the profiles.

Project:

Straight Shape Double glazed Office Glass Partition Wall For Conference Room 0
