Soundproof Glass Office Dividers Aluminium Frame Single glazed Glass Wall

Soundproof Glass Office Dividers Aluminium Frame Single glazed Glass Wall

Brand Name: AE
Model Number: Module system EGG-90
MOQ: 10 Square Meter
Price: USD49-65Per Square Meter
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SQUARE METER PER MONTH
Detail Information
Place of Origin:
Guangdong, CHINA
Certification:
ISO9001 SGS
Series:
Office Glass Partition Wall
Compliance:
Office Building, Hospital, School
Wall Thickness:
90mm
Production Standard:
Basis On The Shop Drawings Which Approved By The Buyer
Surface Finishing And Color:
Black & White Powder Coating
Hardware:
High Quality, Made In Germany (ECO Brand)
Packaging Details:
foam layer and hard cardboard with plywood case
Highlight:

Aluminium Frame Glass Office Dividers

,

Soundproof Glass Office Dividers

,

Single glazed Glass Office Dividers

Product Description

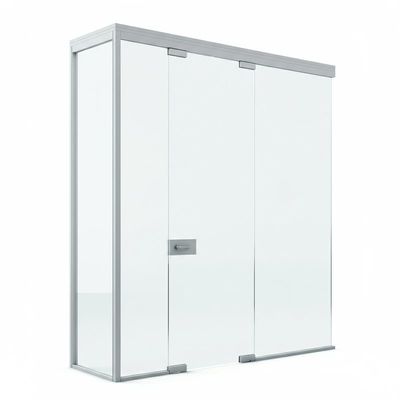

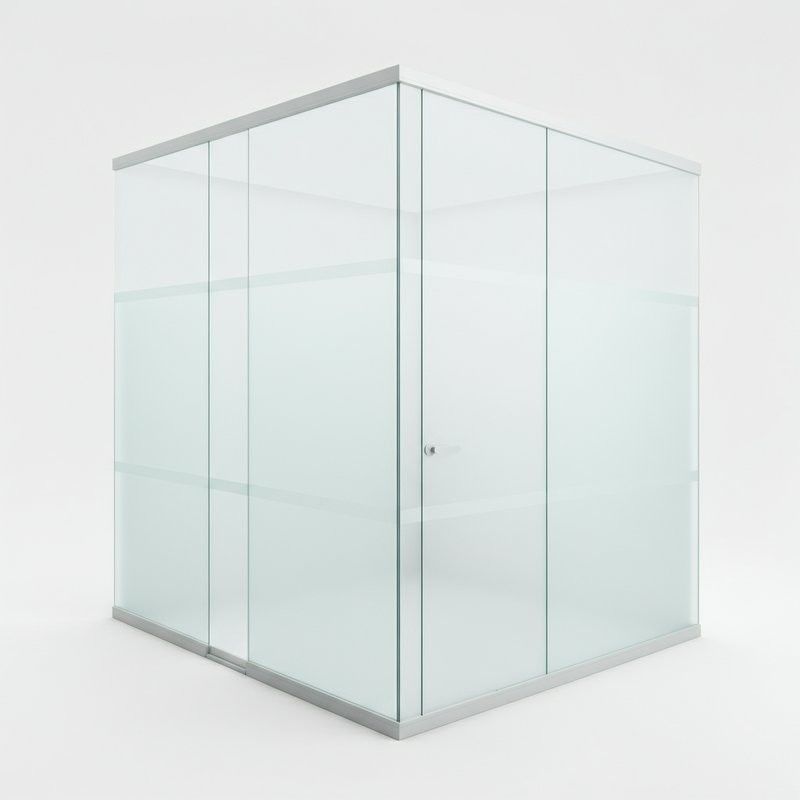

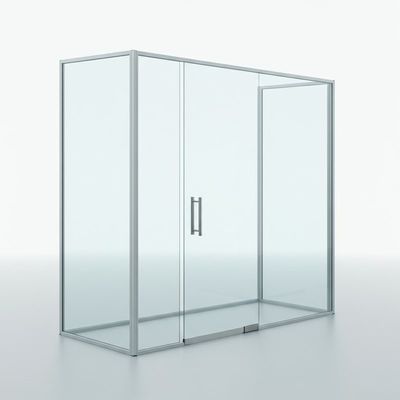

Soundproof Glass Office Dividers Aluminium Frame Single glazed Glass Wall



Optimize your workspace with our Soundproof Glass Office Dividers featuring a sleek aluminum frame and single-glazed glass wall. This design provides an excellent balance of transparency and acoustic control, ensuring a quiet and productive environment while maintaining a modern, minimalist aesthetic.



Additional Features:

1) Integrated Blinds: Blinds can be installed within double-glazed partitions for adjustable privacy.

    Smart Glass Technology: Allows the glass to change from clear to opaque at the touch of a button.



2) Glass module :

Tempered Glass: Common thicknesses range from 5mm to 6mm, offering strength and safety.



2) Frame Material:

Aluminum Frame: Anodized or powder-coated, often 1.5mm to 2.3mm thick, available in various finishes such as silver, black, or white.

Frameless Option: For a sleek, minimalist appearance, using heavy-duty glass fittings.



3) Dimensions:

Height: Can range from standard 4 meters (13 feet) to full floor-to-ceiling installations, depending on the building's height.

Width: Customizable to fit the space; panels typically range from 1 meter (3.3 feet) to 3 meters (10 feet) wide.



4) Installation:

Fixed Installation: The panels are securely mounted to the floor and ceiling.

Modular Design: Allows for easy reconfiguration or relocation of the partitions.

Floor Track or Trackless: Depending on the design preference, partitions may include or exclude floor tracks for a cleaner look.



Specification:

Technical characieristics

WALL THICKNESS
100mm/90mm
HEIGHT up to 4500mm
GRID WIDTH up to 1200mm
WEIGHT 40-50kg/sq.m
ATTACHMENT TO BUILDING STRUCTURE Concealed connections to the slab and walls; sealing along the perimeter; deviations ±10 in height and width
GLASS THICKNESS 5mm/6mm tempered
VISIBILITY Transparent, coloured, matte glass; between-the-glass blinds; foil, screen printing, enamel
