products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Office Glass Partition Wall
Created with Pixso.

Aluminum Frame Panoramic Office Glass Partition Wall For Sliding Suspended

Aluminum Frame Panoramic Office Glass Partition Wall For Sliding Suspended

Brand Name: AE
Model Number: Panoramic system EGG-100C
MOQ: 10 Square Meter
Price: USD112-145Per Square Meter
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SQUARE METER PER MONTH
Detail Information
Place of Origin:
Guangdong, CHINA
Certification:
ISO9001 SGS
Open Style:
Sliding
Application:
Office , Hall .meeting Room And So On
Production Standard:
Basis On The Shop Drawings Which Approved By The Buyer
Profile Of Hanging Partition:
Aluminum Alloy, PVC Strip Sound Proof Partition Walls
Glass Of Hanging Partition:
Clear Tempered Glass, Frosted Glass, Acid Etched Glass
Design:
OEM & ODM
Sound Insulation:
30-42dB
Packaging Details:
foam layer and hard cardboard with plywood case
Highlight:

Suspended Office Glass Partition Wall

Product Description

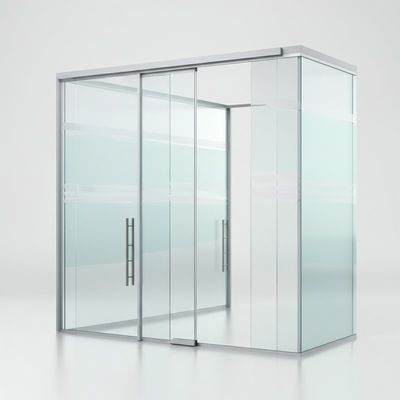

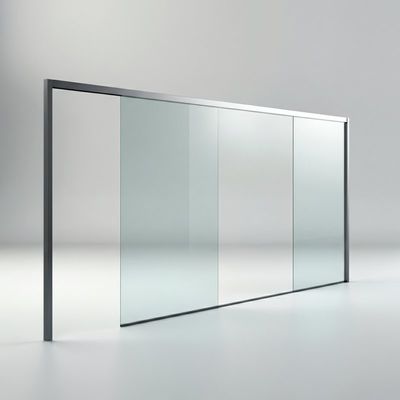

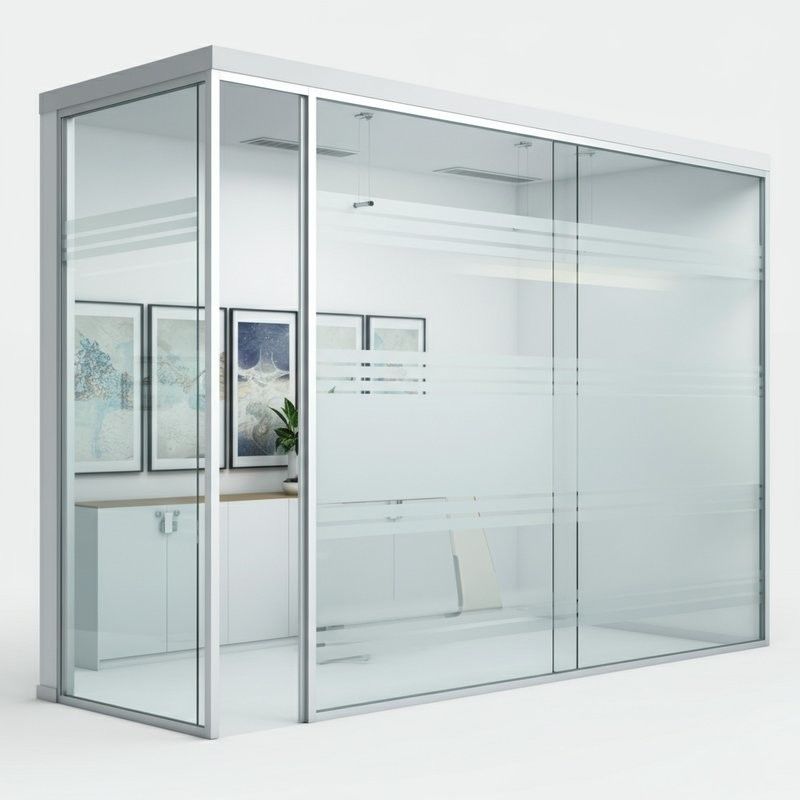

Aluminum Frame Panoramic Office Glass Partition Wall For Sliding Suspended


Our movable and operable panoramic office glass partition wall systems offer effortless parking and storage. When stacked, the partition elements form a compact package, making them easy to fit into tight spaces based on room configuration. The lightweight design of the elements provides significant structural advantages, ensuring ease of handling.

Choose from four standard stacking or parking track systems for smooth, low-noise operation as the individual elements glide into place. This system combines convenience with minimal disruption, enhancing the functionality of your space.


Operable Walls Packaging: Efficient Production and Secure Shipping

Experience streamlined operable walls packaging with our rapid production timeline of just 5-7 days. Our operable walls are expertly packaged in robust wooden boxes to ensure maximum protection during transit. Benefit from our quick and secure shipping process, designed to deliver your operable walls safely and efficiently.


Specification:



Technical characieristics

WALL THICKNESS
108mm/90mm
HEIGHT up to 3000mm
GRID WIDTH up to 1200mm
WEIGHT 70-80kg/sq.m
ATTACHMENT TO BUILDING STRUCTURE Concealed connections to the slab and walls; sealing along the perimeter; deviations ±10mm in height and width
GLASS THICKNESS 10mm/12mm tempered
VISIBILITY Transparent, coloured, matte glass; between-the-glass blinds; foil, screen printing, enamel
DESCRIPTION Glazed partition with an in-plane streamlined look. Made from aluminium, double-glazing structurally adhered to the profiles.



Project:



Aluminum Frame Panoramic Office Glass Partition Wall For Sliding Suspended 0Aluminum Frame Panoramic Office Glass Partition Wall For Sliding Suspended 1
