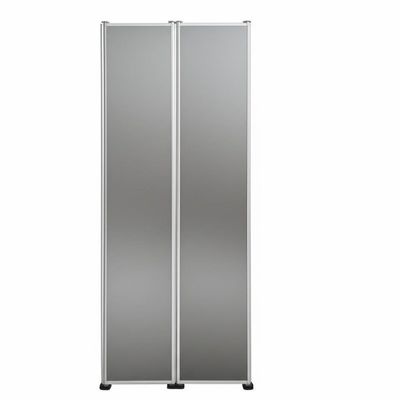

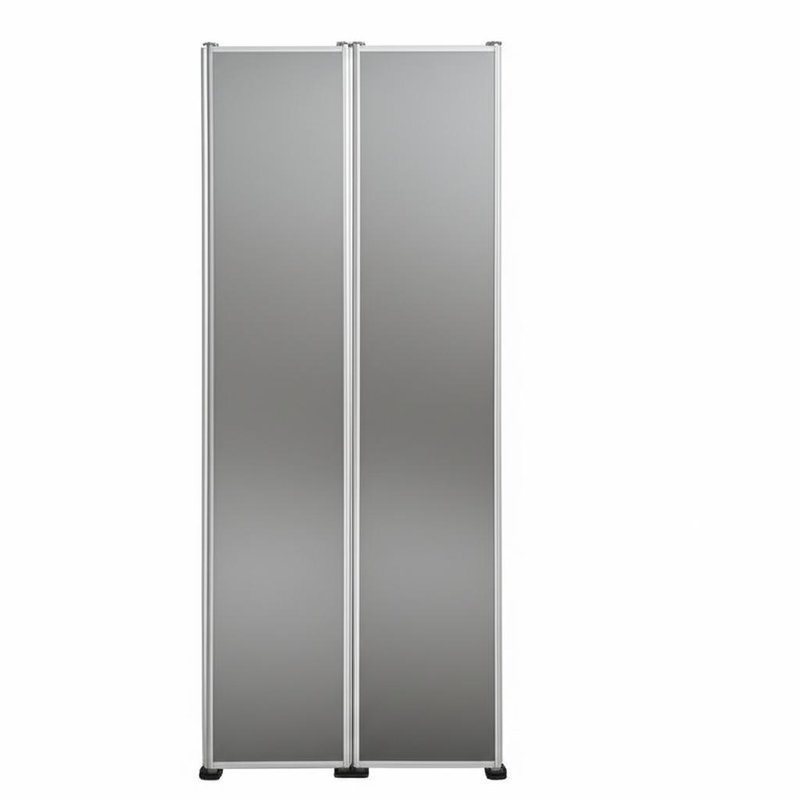

movable wall partition

Brand Name:	AE
Model Number:	AE85
MOQ:	10 Square Meter
Price:	USD 90-110 Per Square Meter
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, CHINA

Certification:

ISO9001 SGS

Products:

Acoustic Movable Wall Partition

Application:

Hospital, Hotel, Laboratory, Restaurant ,meeting Room, Shool

Material:

6061-T6 Aluminum Alloy Frame+ Galvanized Square Tube Keel

Finishing Option:

Fabric, Veneer, Murals And Even Customer-supplied Materials

Base Board:

9mm MDF Magnesium Board, Plywood, Customer-supplied Materials

Sound Insulation:

52db

Function:

Operable, Fold-away, Suspending, Dividing, Soundproofing

Thickness:

85mm

Design:

Depend On Your Demand

Dimensions:

Customization (Height: Up To 6M, Width Per Panel: Up To 1.2M)

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

movable wall partition with wheels

modular partition wall divider

portable room partition wall

Product Description

Engineered for Silence: The AE Partition Technical Advantage

At AE Partition, performance is in our DNA. We are an engineering-driven company dedicated to pushing the boundaries of acoustic isolation and mechanical durability. Our flagship movable wall partition is a testament to this philosophy, integrating state-of-the-art materials and precision mechanics to deliver quantifiable results for demanding environments worldwide.

Performance-Driven Systems: Choose from 68mm, 89mm, or 105mm panel thicknesses, each designed for specific acoustic and structural performance targets.
Superior Mechanics: Our systems feature Dupont POM rollers for wear resistance and 304 Stainless Steel rollers for robust, high-cycle applications, all running on a patented, low-friction wheel geometry.
Absolute Sealing Power: We achieve superior soundproofing through a combination of an 800N mechanical jack-lift seal and 40N/m magnetic gaskets, creating a virtually airtight closure.
Structural Integrity: A core of reinforced Q235 steel and a 6061-T6 aluminum frame guarantees long-term stability and safety, validated by our pre-production risk analysis.

Elevate your spaces with partitions that harmonize innovation, privacy, and durability. Contact AE Partition today to transform your vision into reality!

SPECIFICATION:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
	Dimensions in mm*			Design
Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight

PROJECT:

movable wall partition 0 movable wall partition 1

ABOUT US:

movable wall partition 3

movable wall partition 4
