STC Rating 42-56dB Movable Partition Wall with 6061-T6 Profile and Q235 Steel Frame for Superior Soundproofing

Brand Name:	AE
Model Number:	AE100
MOQ:	10 Square Meter
Price:	USD 90-135 Per Square Meter
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, CHINA

Certification:

ISO9001 SGS

ModelProduct Name:

Acoustic Movable Partition

Feature:

Sound Proof Partition

Thickness:

105CM

STC Rating:

42-56dB

Compliance:

Meeting Room, School

Dimensions:

Customization (Height: Up To 18M, Width Per Panel: Up To 1.2M)

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

STC Rating 42-56dB Movable Partition Wall

6061-T6 Profile Movable Partition Wall

Q235 Steel Frame Movable Partition Wall

Product Description

Office Wood Partition Movable Walls Portable Folding And Removable

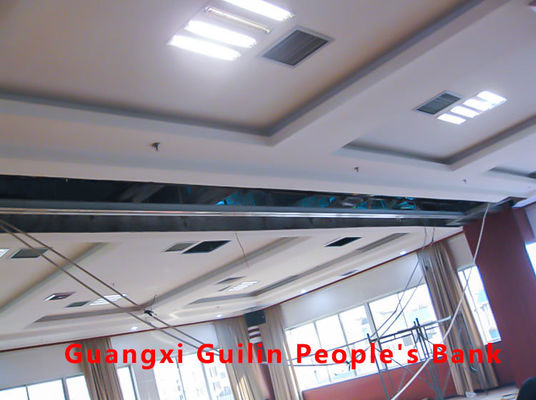

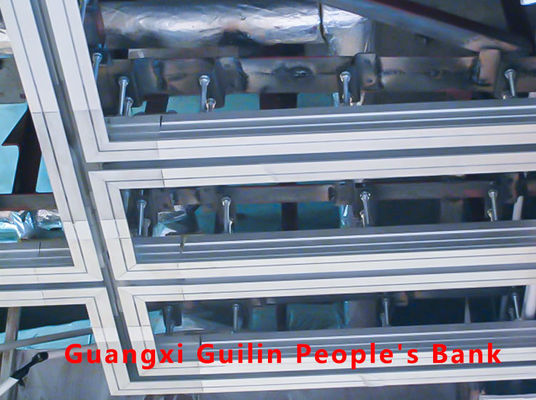

Movable partition walls swiftly divide rooms using sleek 100 mm sliding panels, eliminating the need for heavy ceiling beams or bracing. The lightweight top guide track can be directly mounted onto a suspended ceiling, while the removable floor track ensures clear floor space when not in use.

Our movable walls excel in acoustical performance, making them the preferred choice for sound insulation with ratings ranging from 37 to 53 decibels. Panels glide effortlessly on ball-bearing trolleys along their tracks, ensuring smooth operation. Engineered for sturdiness and reliability with enhanced safety features.

High-Quality Service Commitment

SGS and ILAC-MRA certified products ensuring reliable performance
Combines leading German partition technology for global professional space solutions
Extended product lifespan with long-term performance stability
Quick follow-up and transparent quoting services
On-site inspection services to ensure quality and accuracy
Punctual delivery to maintain project schedules

Panel Options & Features

Thickness: 100mm for enhanced stability and sound insulation

Finishes: Diverse range of acoustical and decorative options

Construction: Robust 6061-T6 profile with Q235 steel frame for exceptional durability

Mechanisms: Top and bottom jack lifting (800N sealing power) with magnetic seal (40N/m attraction) for secure closure and acoustic insulation

Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness (mm)	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value (Rw): 52/56 dB (GB/T19889.3-2005). Positive and frictional locking with convex-concave profile form (40 N/m magnetic attraction).

* Larger widths available upon request. Provisional dimensions subject to Design Department confirmation.
