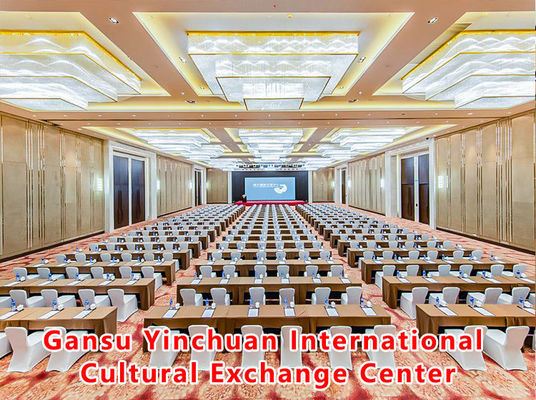

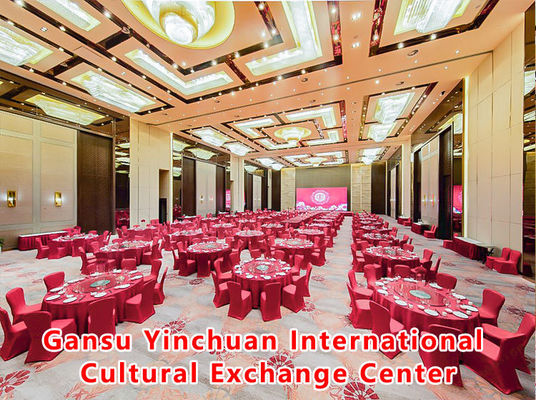

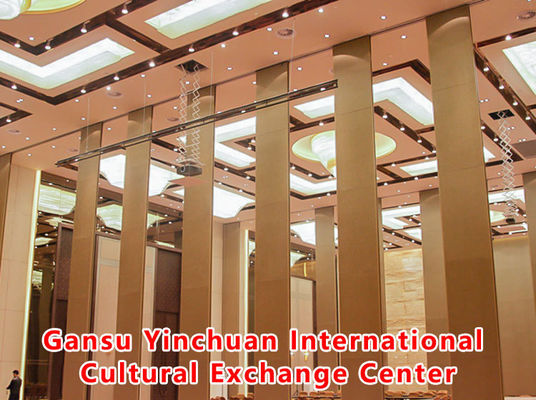

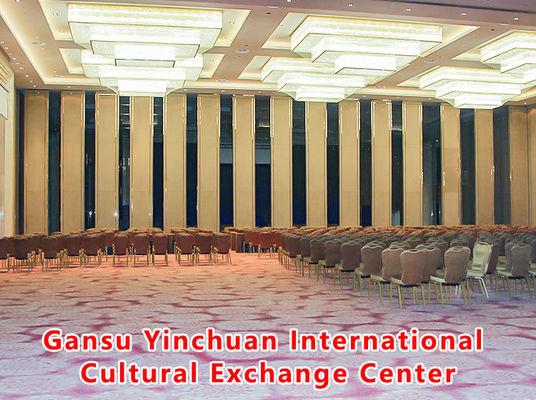

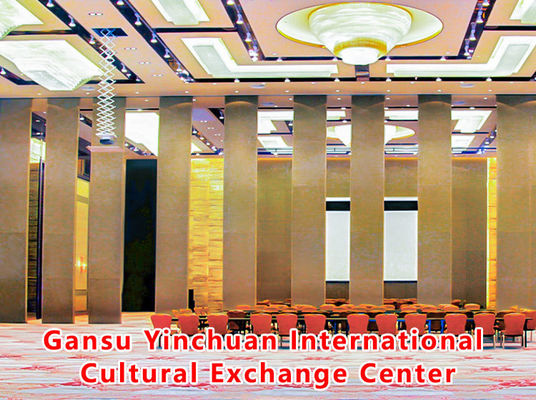

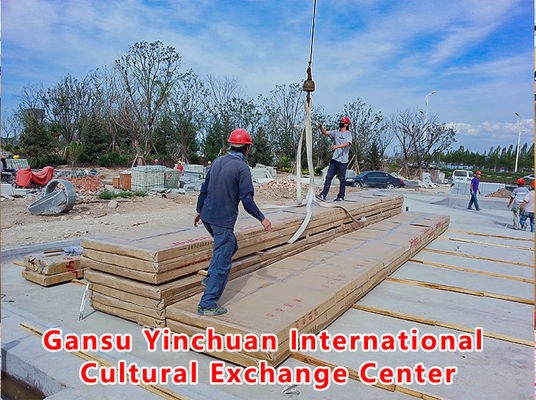

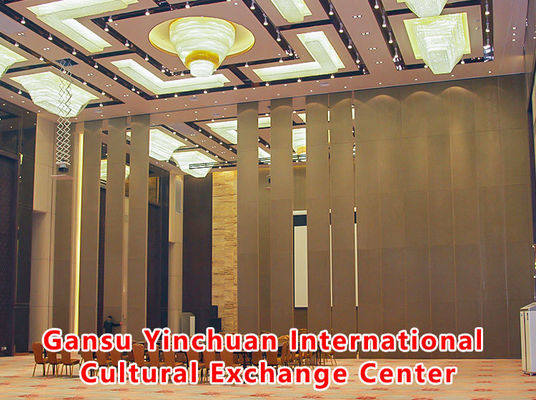

Gansu Yinchuan International Cultural Exchange Center | Aluminum Frame Movable Partition Wall with High Pressure Laminate Board and Dupont POM Rollers for Top and Bottom Jack Lifting

Brand Name:	AE
Model Number:	AE100
MOQ:	10 Square Meter
Price:	USD 90-135 Per Square Meter
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, CHINA

Certification:

ISO9001 SGS

Product:

Movable Partition Wall

Base Board:

High Pressure Laminate Board

Compliance:

Banquet Hall, Conference Room

Thickness:

105CM

STC Rating:

42-56dB

Dimensions:

Customization (Height: Up To 18M, Width Per Panel: Up To 1.2M)

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

High Pressure Laminate Board Movable Partition Wall

Dupont POM Rollers Operable Wall Panel

Top and Bottom Jack Lifting Room Divider

Product Description

Aluminum Frame Movable Partition Wall Track For Meeting Room

New Design Aluminum Frame Movable Partition Wall Track

Our movable partition boards provide a highly adaptable and efficient method for dividing spaces. Featuring a simple attachment and removal system with reinforced upper and lower centers, these partitions offer greater stability during setup and takedown compared to conventional sliding mechanisms.

Key Features

Multiple adjustable panels for flexible space management
Creates distinct zones while maintaining ventilation and lighting
Lightweight yet sturdy construction with essential rigidity
Effective soundproofing capabilities
Customizable options for models, finishes, and storage solutions
Faster installation than traditional fixed walls

High-Quality Service Commitment

SGS and ILAC-MRA certified products for reliable performance
German partition technology for professional space solutions
Extended product lifespan with stable long-term performance
Quick follow-up and transparent quoting services
On-site inspection services for quality assurance
Punctual delivery to ensure project timelines

Roller System Features

Dupont POM rollers for optimal performance
304 stainless steel construction with precision CNC machining
Patented wheel design for effortless operation
Heavy-duty capabilities with integrated safety features

Panel Specifications

100mm thickness for enhanced stability and sound insulation
Diverse range of acoustical and decorative finishes
Robust 6061-T6 profile with Q235 steel frame
Top and bottom jack lifting mechanisms (800N sealing power)
Magnetic seal with 40N/m attraction for secure closure

Technical Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness (mm)	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection
AE65	65	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	85	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
