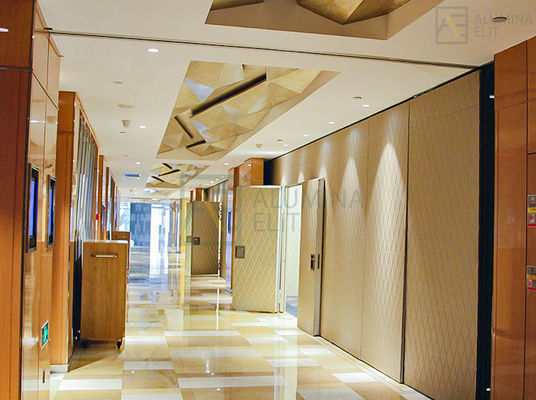

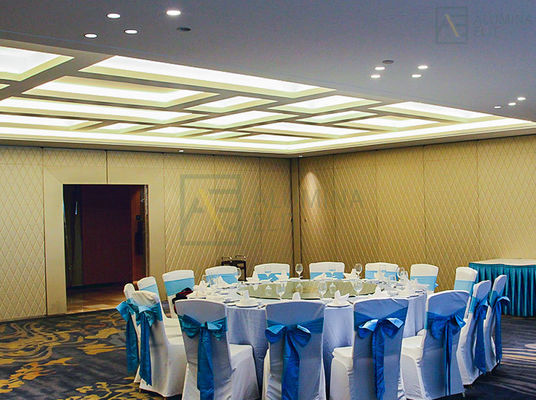

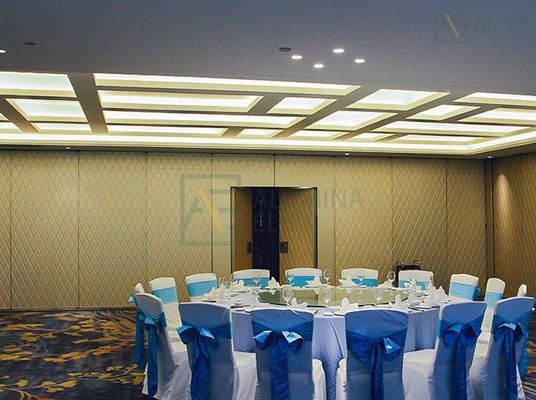

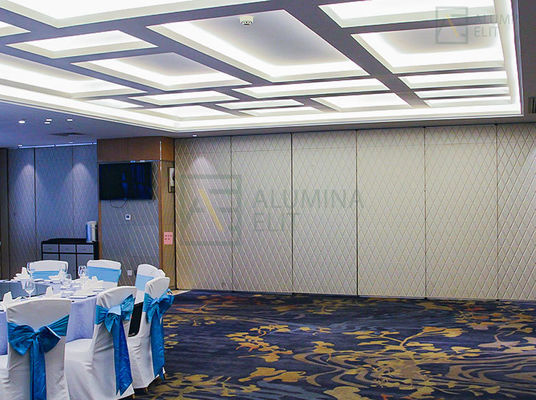

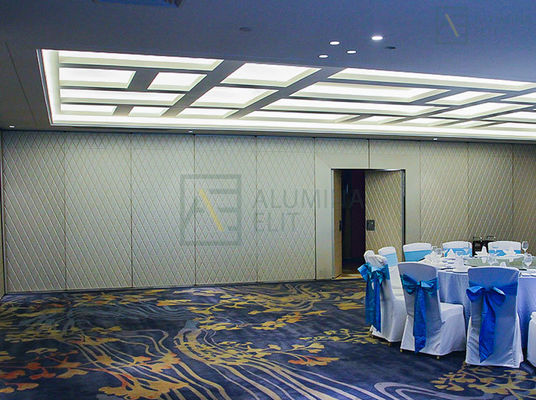

Pullman Wenzhou Hotel：Sliding Partition Wall with STC Rating 42-56dB Soundproofing and 6061-T6 Profile Q235 Steel Frame

Pullman Wenzhou Hotel：Sliding Partition Wall with STC Rating 42-56dB Soundproofing and 6061-T6 Profile Q235 Steel Frame

Pullman Wenzhou Hotel：Sliding Partition Wall with STC Rating 42-56dB Soundproofing and 6061-T6 Profile Q235 Steel Frame

Brand Name: AE
Model Number: AE65
MOQ: 10 Square Meter
Price: USD 60-90 Per Square Meter
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 SQUARE METER PER MONTH
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, CHINA
Certification:
ISO9001 SGS
Product Name:
Soundproofing Partition Wall
Material:
Aluminum +wooden
Compliance::
Meeting Room, School
Thickness::
68CM
STC Rating::
42-56dB
Dimensions::
Customization (Height: Up To 4.5M, Width Per Panel: Up To 1.2M)
Packaging Details:
foam layer and hard cardboard with plywood case or steel pallet
Highlight:

STC Rating 42-56dB Sliding Partition Wall

,

6061-T6 Profile Sliding Partition Wall

,

Q235 Steel Frame Sliding Partition Wall

Product Description
Sliding Wooden Partition Wall Soundproofing Partition Wall Movable
Wooden Soundproofing Movable Partition Wall
Our acoustic movable walls are designed to meet diverse market needs, available in three distinct types based on partition thickness and operational characteristics:
  • Assembled Acoustic Movable Walls: Features detachable panels with top and bottom centers for easy assembly and disassembly.
  • Integrated Acoustic Movable Walls: Independent panels integrated with sliding teeth and push-pull tracks for seamless adjustments.
  • Traditional Acoustic Movable Walls: Multiple partition panels with sliding teeth and push-pull rails for versatile spatial configurations.
High-Quality Service Commitment
  • SGS and ILAC-MRA certified products for reliable performance
  • Incorporates leading German partition technology for professional space solutions
  • Extended product lifespan with stable long-term performance
  • Quick follow-up and transparent quoting services
  • On-site inspection services for quality assurance
  • Punctual delivery to ensure project timelines
Panel Options & Features
  • 65mm thickness for enhanced stability and sound insulation
  • Multiple acoustical and decorative finish options
  • Robust 6061-T6 profile with Q235 steel frame construction
  • Top and bottom jack lifting mechanisms (800N sealing power)
  • Magnetic seal with concave-convex profiles (40N/m magnetic attraction)
Technical Specifications
GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS
Series Element thickness (mm) Element width* (min./max. mm) Clear height* (min./max. mm) Construction Panel fixing Vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
Technology Specifications:
Weighted sound reduction value (Rw): 52/56 dB (GB/T19889.3-2005)
Positive and frictional locking: Convex-concave profile form with 40 N/m magnetic attraction
*Larger widths available upon request. Final dimensions subject to Design Department confirmation.
Pullman Wenzhou Hotel：Sliding Partition Wall with STC Rating 42-56dB Soundproofing and 6061-T6 Profile Q235 Steel Frame 0 Pullman Wenzhou Hotel：Sliding Partition Wall with STC Rating 42-56dB Soundproofing and 6061-T6 Profile Q235 Steel Frame 1 Pullman Wenzhou Hotel：Sliding Partition Wall with STC Rating 42-56dB Soundproofing and 6061-T6 Profile Q235 Steel Frame 2
