Customizable Dimensions Movable Partition Wall with 6061-T6 Profiles and 304 Stainless Steel Rollers

Customizable Dimensions Movable Partition Wall with 6061-T6 Profiles and 304 Stainless Steel Rollers

Brand Name:	AE
Model Number:	AE100
MOQ:	10 Square Meter
Price:	USD90-135Per Square Meter
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001 SGS

Model:

Exhibition Partition Walls

Application:

Banquet Hall, Conference Room

Material:

MDF, Aluminum Frame，Fabric

Dimensions:

Customization (Height: Up To 18M, Width Per Panel: Up To 1.2M)

Design:

OEM & ODM

Sound Insulation:

Max 56dB

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

Customizable Dimensions Movable Partition Wall

6061-T6 Profiles Temporary Walls

304 Stainless Steel Rollers Exhibition Partition Walls

Product Description

Temporary Walls with Doors Movable Partition Wall

High-Performance Movable Walls for Hotels & Halls

Achieve superior space management with our acoustic partition walls. Our system delivers on all fronts:

German Engineering: Global professional technology for advanced performance.
Superior Acoustics: Excellent sound insulation for privacy and focus.
Effortless Operation: Manually operated system with a simple handle and smooth-gliding rollers.
Robust Build: Durable 6061-T6 profiles, steel frame, and heavy-duty 304 stainless steel rollers.
Full Customization: Complete OEM/ODM services and a wide selection of panel finishes.
Unbeatable Value: Highly competitive pricing and rapid, flexible project support.

Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS
Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56

Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

** Depending on the sound insulation/weight

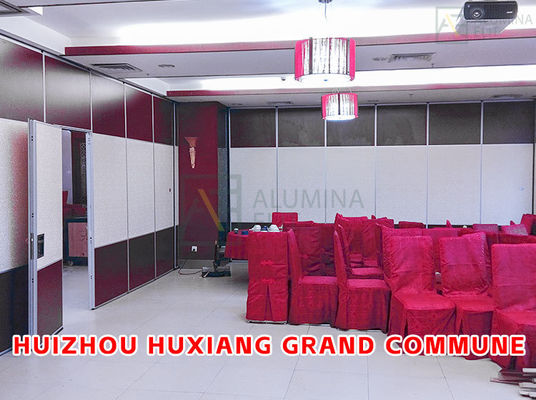

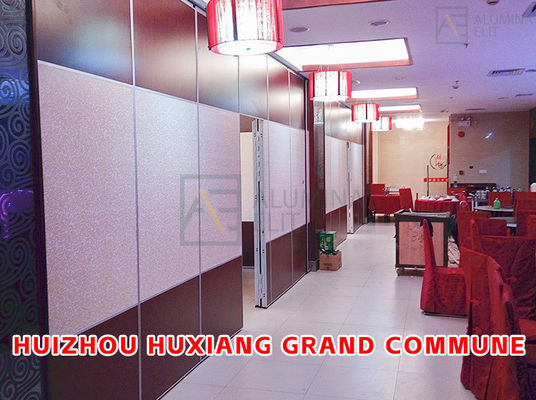

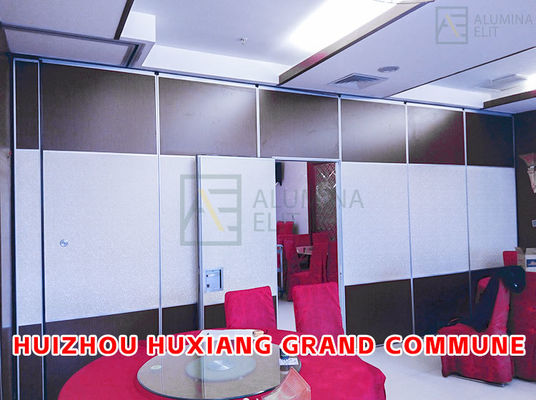

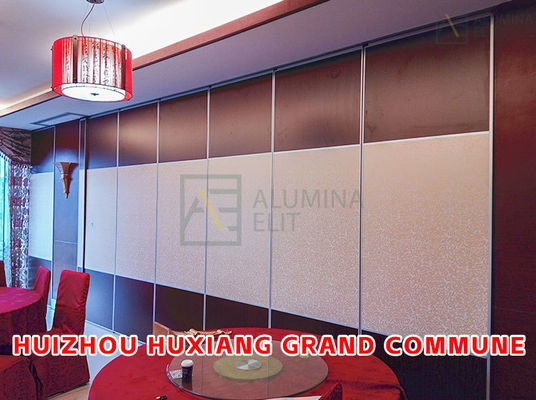

Project Gallery
