Durable Construction Heavy-Duty Rollers Accordion Walls with 56dB Sound Insulation and Collapsible Partition Wall

Durable Construction Heavy-Duty Rollers Accordion Walls with 56dB Sound Insulation and Collapsible Partition Wall

Brand Name:	AE
Model Number:	AE100
MOQ:	10 Square Meter
Price:	USD90-135Per Square Meter
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001 SGS

Model:

Exhibition Partition Walls

Application:

Banquet Hall, Conference Room

Material:

MDF, Aluminum Frame，Fabric

Dimensions:

Customization (Height: Up To 18M, Width Per Panel: Up To 1.2M)

Design:

OEM & ODM

Sound Insulation:

Max 56dB

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

Durable Construction Accordion Walls

Heavy-Duty Rollers Collapsible Partition Wall

56dB Sound Insulation Foldable Partition Wall

Product Description

Accordion Walls Collapsible Foldable Partition Wall

Heavy-Duty Movable Partitions Built to Last

Invest in a long-term solution with our robustly constructed movable partition walls. The system's durability is assured by a Q235 steel internal frame and heavy-duty 304 stainless steel rollers, precision-machined for reliability. We utilize superior Dupont POM for key roller components, known for exceptional wear resistance. The panels themselves are built to withstand daily use, while the powerful 800N sealing mechanism ensures performance does not degrade over time. Choose our system for a state-of-the-art product that promises years of flawless operation.

Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

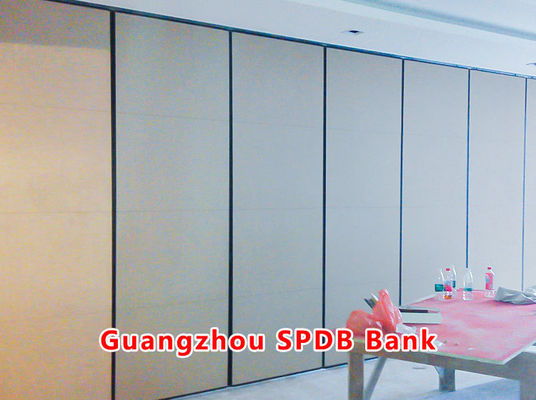

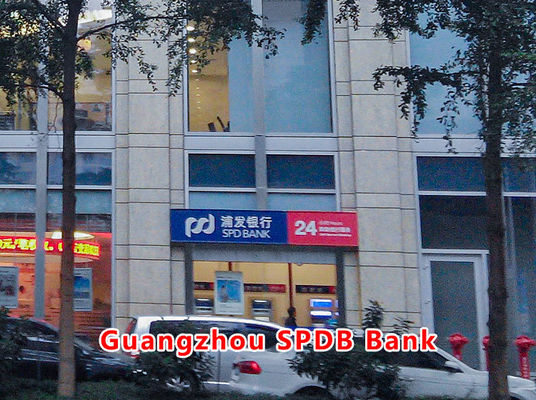

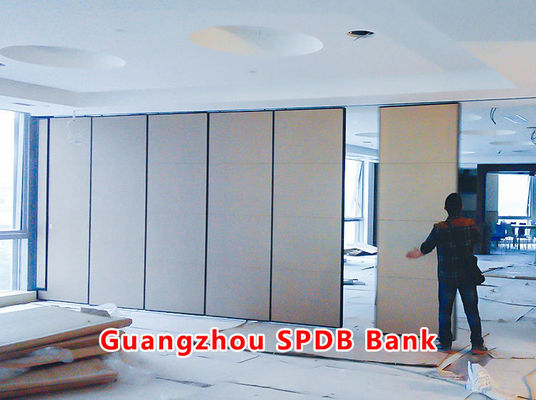

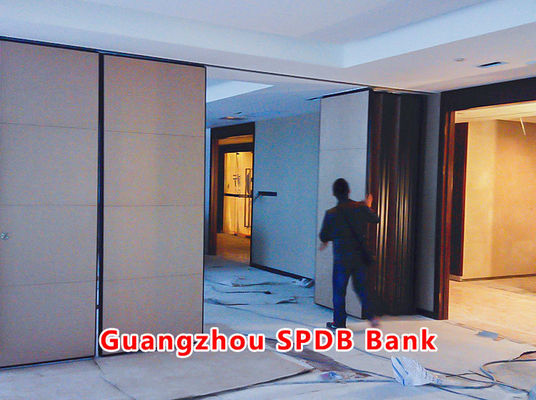

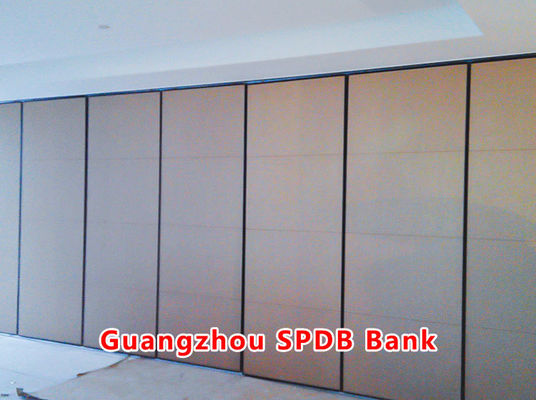

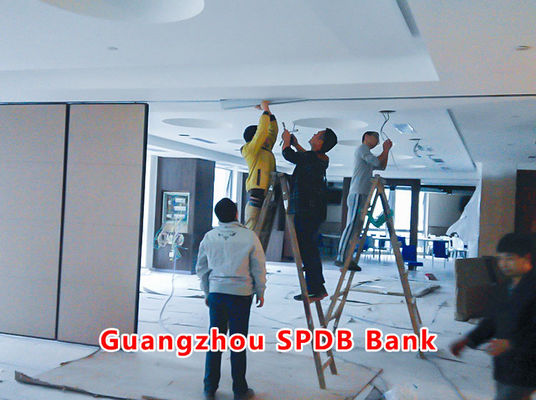

Project Gallery
