Portable Soundproof Movable Partition Wall with Dupont POM Rollers and Top and Bottom Jack Lifting

Portable Soundproof Movable Partition Wall with Dupont POM Rollers and Top and Bottom Jack Lifting

Portable Soundproof Movable Partition Wall with Dupont POM Rollers and Top and Bottom Jack Lifting

Brand Name: AE
Model Number: AE100
MOQ: 10 Square Meter
Price: USD 90-125 Per Square Meter
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 SQUARE METER PER MONTH
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001 SGS
Model:
AE100 Movable Partition Wall
Finishing Option:
Fireproof Board
Compliance:
Meeting Room, School
Thickness:
105CM
STC Rating:
42-56dB
Dimensions:
Customization (Height: Up To 18M, Width Per Panel: Up To 1.2M)
Name:
Movable Partition Wall
Packaging Details:
foam layer and hard cardboard with plywood case or steel pallet
Highlight:

Dupont POM Rollers Movable Partition Wall

,

Top and Bottom Jack Lifting Folding Partition Wall

,

Magnetic Seal Operable Partition Wall

Product Description
Design Portable Movable Partition Wall Soundproof Folding Hotel Room
Our high-quality, custom Movable Partition Wall systems combine ease of installation with elegant design. Designed for simplicity, reusability, and cost-effectiveness, our partitions offer comprehensive features including bridging, panels, doors, and windows.
Key Features
  • Customizable finishes with options for corner channels, soundproof blankets, and cavity insulation
  • Panel thickness options from 65mm to 100mm, accommodating heights up to 40'
  • Excellent sound control with STC ratings up to 53
  • User-friendly design with comprehensive installation training
  • Non-intrusive construction with flexible wiring and plumbing options
Quality Assurance
  • SGS and ILAC-MRA certified products
  • Incorporates leading German partition technology
  • Extended product lifespan with stable long-term performance
  • Quick follow-up and transparent quoting services
  • On-site inspection services for quality assurance
  • Punctual delivery to ensure project timelines
Roller System Features
  • Dupont POM rollers for optimal performance
  • 304 stainless steel construction with heavy-duty capabilities
  • Precision CNC machining with safety features
  • Patented wheel design for effortless operation
Panel Specifications
  • 100mm thickness for enhanced stability and sound insulation
  • Diverse range of acoustical and decorative finishes
  • Robust 6061-T6 profile with Q235 steel frame
  • Top and bottom jack lifting mechanisms (800N sealing power)
  • Magnetic seal with 40N/m attraction for secure closure
Technical Specifications
Series Element Thickness (mm) Element Width (min/max mm) Clear Height (min/max mm) Construction Panel Fixing Element Interconnection
AE65 65 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE85 85 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE100 100 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
Technology: Weighted sound reduction value (Rw): 52/56 dB (GB/T19889.3-2005)
Connection System: Convex-concave profile form with 40 N/m magnetic attraction
* Larger widths available upon request. Final dimensions subject to Design Department approval.

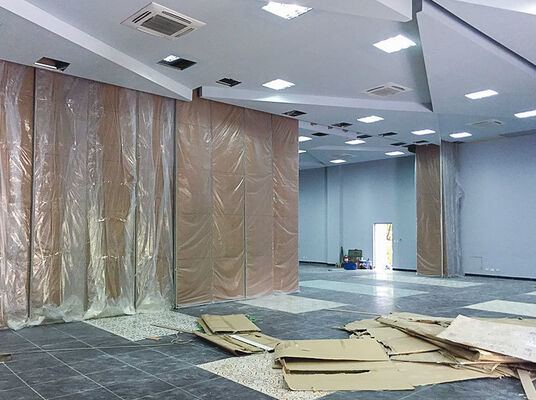

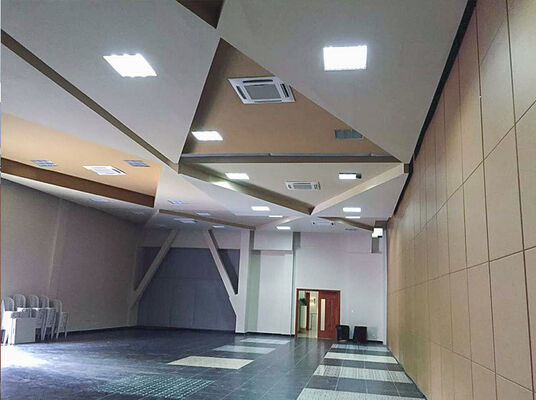

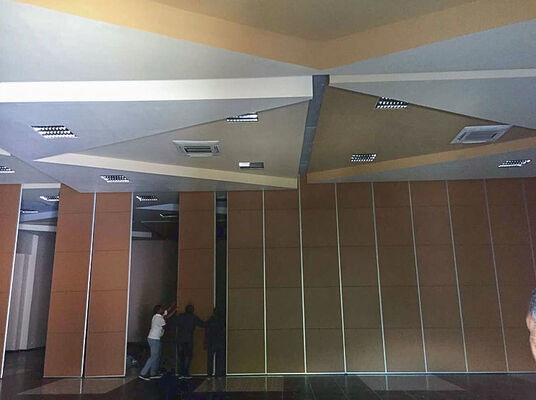

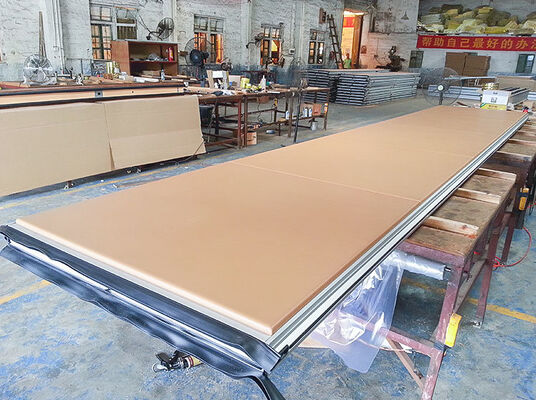

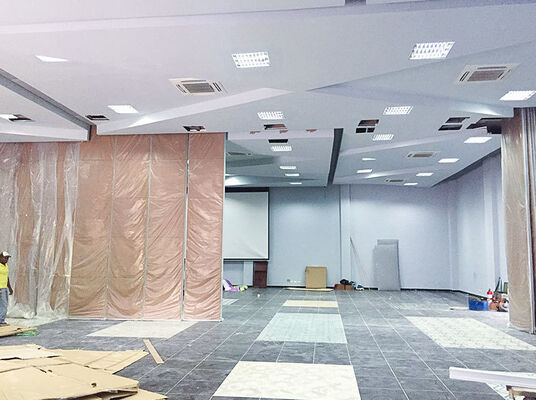

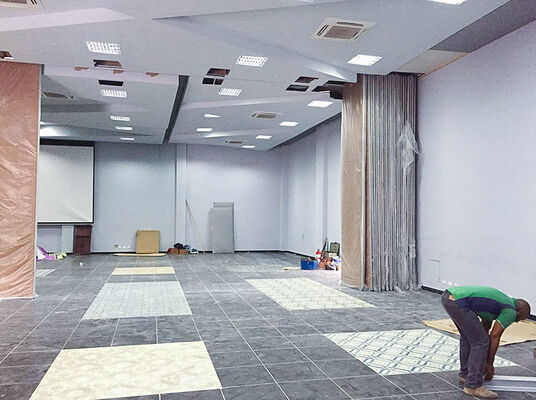

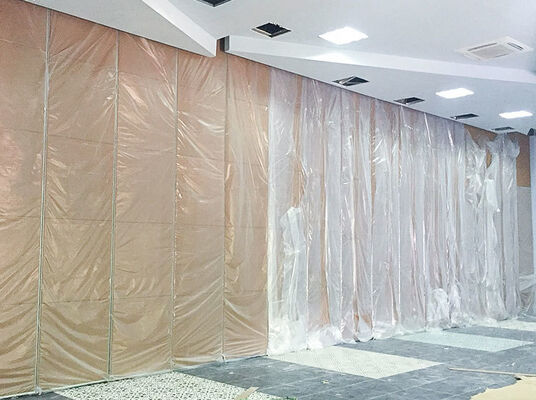

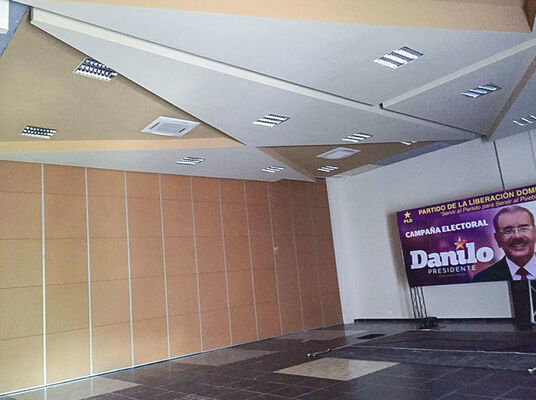

Portable Soundproof Movable Partition Wall with Dupont POM Rollers and Top and Bottom Jack Lifting 0 Portable Soundproof Movable Partition Wall with Dupont POM Rollers and Top and Bottom Jack Lifting 1 Portable Soundproof Movable Partition Wall with Dupont POM Rollers and Top and Bottom Jack Lifting 2
