Customizable Movable Partition Wall with 89CM Thickness and Up to 6M Height Sliding Folding Partition

Brand Name:	AE
Model Number:	AE85
MOQ:	10 Square Meter
Price:	USD 80-100 per square meter
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001 SGS CANS

Product:

Movable Partition Wall

Panel Material:

Customer-supplied Materials

Compliance:

Office Building, School, Hospital

Thickness:

89CM

STC Rating:

42-56dB

Dimensions:

Customization (Height: Up To 6M, Width Per Panel: Up To 1.2M)

Name:

Movable Partition Wall

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

89CM Thickness Movable Partition Wall

Up to 6M Height Sliding Folding Partition

Up to 1.2M Width per Panel Operable Wall Panel

Product Description

Customization Movable Partition Wall - Sliding Folding Partitions

Our movable partition walls consist of multiple panels suspended from tracks, offering flexible and effective space management. These partitions are operated manually and require no special tools or equipment. The only tool needed is the operating handle, which locks and adjusts the mechanical seals at both the top and bottom, ensuring a precise acoustic seal when the panels are closed.

Our acoustically rated movable partition walls come in various configurations, including paired, individual (omnidirectional), and continuously articulated (train) options, catering to diverse spatial and acoustic needs.

Key Advantages

Extensive experience collaborating with major clients
Flexible control over order delivery timelines
Dedicated design team for new product development and solutions
Product performance certified by SGS and ILAC-MRA
Incorporates German partition technology for professional global space solutions
Extends service life of professional products

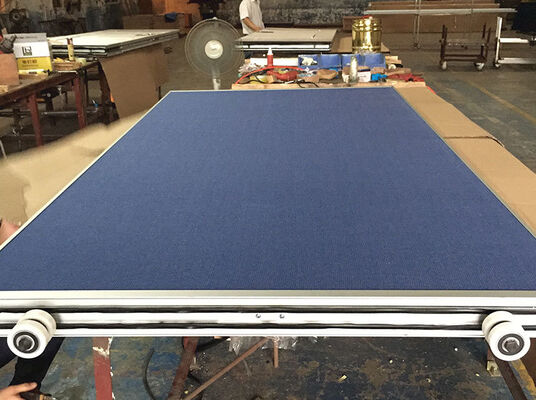

Roller Options & Features

High-quality Dupont POM rollers
Robust 304 stainless steel rollers for heavy-duty use with safety devices and CNC machining
Exclusive patented wheel surface and shape for enhanced system usability

Panel Options & Features

89mm thickness for enhanced stability and sound insulation
Diverse range of acoustical and decorative finishes
Robust 6061-T6 profile with Q235 steel frame for exceptional durability
Top and bottom jack lifting mechanisms with 800N sealing power
Magnetic seal with concave/convex profiles providing 40N/m magnetic attraction

Technical Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness (mm)	Element width* (min/max mm)	Clear height* (min/max mm)	Framed construction	Panel fixing	Element interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight
