High Pressure Laminate Board Movable Partition Wall with STC Rating 42-56dB and Customizable Dimensions

Brand Name:	AE
Model Number:	AE65
MOQ:	10 Square Meter
Price:	USD 60-90 Per Square Meter
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, CHINA

Certification:

ISO9001 SGS

Model:

Movable Partition Wall

Base Board:

High Pressure Laminate Board

Compliance:

Convention Center, Office Building, School

Thickness:

68CM

STC Rating:

42-56dB

Dimensions:

Customization (Height: Up To 4.5M, Width Per Panel: Up To 1.2M)

Name:

Movable Partition Wall

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

STC Rating 42-56dB Movable Partition Wall

High Pressure Laminate Board Movable Partition Wall

Customizable Dimensions Movable Partition Wall

Product Description

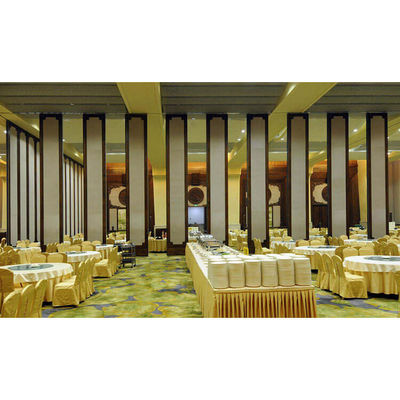

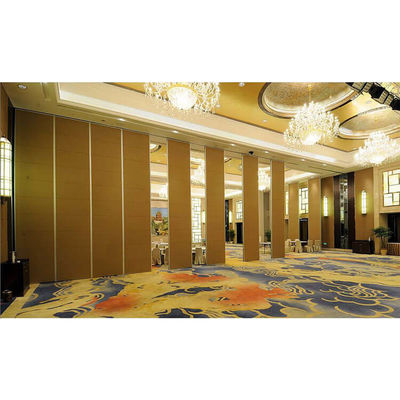

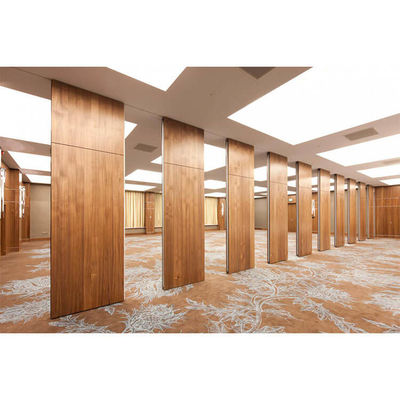

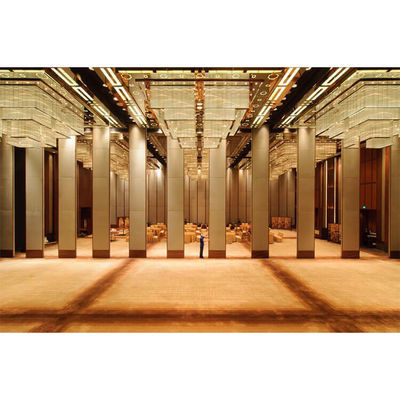

Conference Movable Partition Wall - Retractable Flexible Space Management

AE Operable Partitions consist of multiple panels suspended from overhead tracks, offering a versatile partitioning solution. These partitions are manually operated and do not require any specialized equipment or tools. The only necessary tool is the operating handle, which locks and adjusts the mechanical seals at both the top and bottom, ensuring a secure acoustic seal when the panels are closed.

AE's operable partitions come in a range of configurations, including paired, single (omnidirectional), and continuously articulated (train) options, all designed to meet various acoustic and spatial needs.

Exclusive Design Factory-Direct Pricing for High-Performance Movable Partition Walls

Key Benefits:

Top-Hung System: Eliminates the need for a floor track, enhancing floor aesthetics and functionality.
Effortless Movement: Features retractable top and bottom seals for smooth and easy panel movement.
Elegance Meets Durability: Blends sophisticated design with sturdy construction for a striking and lasting solution.
Customizable Edges: Choose between concealed or exposed panel edge profiles to suit your design preferences.
Flexible Panel Stacking: Offers a range of stacking options to adapt to various space requirements.
Sealed Roller Assemblies: Equipped with sealed-for-life rollers for whisper-quiet operation and reliability.
Versatile Soundproofing: Available in multiple levels of sound reduction to match your acoustic needs.
Diverse Finishes: A wide array of surface finishes to complement any interior design.

Our Offerings:

Comprehensive Professional Design Services: Tailored solutions to meet your specific needs.
Survey and Installation Guidance: Expert assistance for precise and efficient setup.
Premium Materials and Components: Only the highest quality materials are used in our products.
Highly Skilled Team: A fully experienced workforce dedicated to excellence.
Maintenance Contracts: Ongoing support to keep your investment in optimal condition.

Technical Specifications

Series	Element thickness (mm)	Element width* (min/max mm)	Clear height* (min/max mm)	Framed construction	Panel fixing	Element interconnection
AE65	65	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	85	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight
