Wooden Finish Movable Partition Wall with 304 Stainless Steel Roller and Dupont POM Roller for Office Framed Construction

Brand Name:	AE
Model Number:	AE65
MOQ:	10 Square Meter
Price:	USD 79-108 per square meter
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001 SGS CANS

Product:

Movable Partition Wall

Base Board:

Customer-supplied Materials

Compliance:

Meeting Room

Thickness:

68CM

STC Rating:

42-56dB

Dimensions:

Customization (Height: Up To 4.5M, Width Per Panel: Up To 1.2M)

Name:

Movable Partition Wall

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

304 Stainless Steel Roller Movable Partition Wall

Dupont POM Roller Movable Partition Wall

Magnetic Seal Movable Partition Wall

Product Description

Wooden Finish Movable Partition Wall Framed Construction for Office

As one of the world's leading providers of partition systems, we are innovators and trendsetters in room management solutions. Our vision focuses on making handling simple, effective, and intelligent for users.

Service Benefits

Increase the longevity of your specialty products
Quick follow-up with quotes
Professional site inspections
Identification of potential safety or function issues
24-hour response to product or price inquiries
Fluent English support from well-trained staff
Custom production following your design specifications

Product Features

Our success stems from continuous investment in attractive product development, focusing on design, functionality, and research. We maintain market leadership through constant innovation and product improvement.

Roller Options & Features

Dupont POM rollers for smooth operation
304 stainless steel heavy-duty rollers with safety devices & CNC machining
Patented wheel surface and shape for easy partition movement

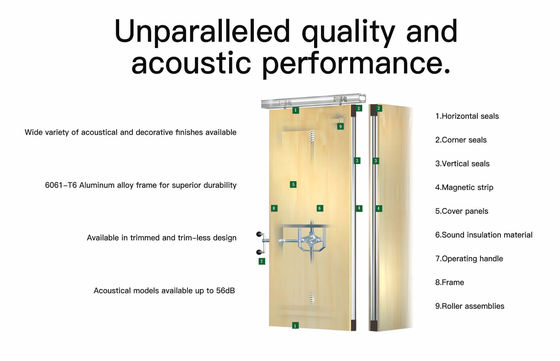

Panel Options & Features

Available thicknesses: 68mm, 89mm, and 105mm
Wide variety of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for superior durability
Top & bottom jack lifting mechanism with 800N power
Magnetic seal in concave & convex profile with 40N/m attraction

Technical Specifications

Series	Element Thickness (mm)	Element Width* (min/max mm)	Clear Height* (min/max mm)	Construction	Panel Fixing	Element Interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technical Details

Weighted sound reduction value (Rw): 52/56 dB (GB/T19889.3-2005)
Positive and frictional locking with convex-concave profile form
Magnetic strip attraction force: 40 N/m

* Larger widths possible on application. Provisional details regarding element heights/widths require consultation with our Design Department.
