Sliding Single Glazed Office Glass Partition Wall with Concealed Connections and Transparent Coloured Glass

Brand Name:	AE
Model Number:	Panoramic system EGG-100C
MOQ:	10 Square Meter
Price:	USD112-145Per Square Meter
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, CHINA

Certification:

ISO9001 SGS

Product Name:

Single Glazed Glass Partitions

Application:

Office , Hall .meeting Room And So On

Production Standard:

Basis On The Shop Drawings Which Approved By The Buyer

Profile Of Hanging Partition:

Aluminum Alloy, PVC Strip Sound Proof Partition Walls

Glass Of Hanging Partition:

Clear Tempered Glass, Frosted Glass, Acid Etched Glass

Design:

OEM & ODM

Sound Insulation:

30-42dB

Packaging Details:

foam layer and hard cardboard with plywood case

Highlight:

Concealed Connections Glass Partition Wall

Transparent Office Glass Partition Wall

Coloured Single Glazed Glass Partition

Product Description

Sliding Single Glazed Frame Office Glass Partition Wall For Exhibition Centers

Our Single Glazed Frame Office Glass Partition Wall System offers a sleek and space-efficient solution for modern office environments. When stacked, the elements compactly arrange into a minimal footprint, making them ideal for tight spaces. The lightweight nature of these elements provides notable structural benefits, enhancing ease of use and installation.

The system features four standard stacking and parking track options, ensuring smooth and quiet operation. The individual glass panels slide seamlessly into place on the movable and operable partition tracks, offering both convenience and minimal noise disruption. Ideal for dynamic office spaces, this system combines functionality with sophisticated design.

Operation

Partitions are top-supported, manually operated panels stacked in designated areas. When closed, the operable wall provides a complete sound retardant barrier without requiring floor tracks.

Specification

Technical Characteristics	Details
Wall Thickness	108mm/90mm
Height	Up to 3000mm
Grid Width	Up to 1200mm
Weight	70-80kg/sq.m
Attachment to Building Structure	Concealed connections to the slab and walls; sealing along the perimeter; deviations ±10mm in height and width
Glass Thickness	10mm/12mm tempered
Visibility Options	Transparent, coloured, matte glass; between-the-glass blinds; foil, screen printing, enamel
Description	Glazed partition with an in-plane streamlined look. Made from aluminium, double-glazing structurally adhered to the profiles.

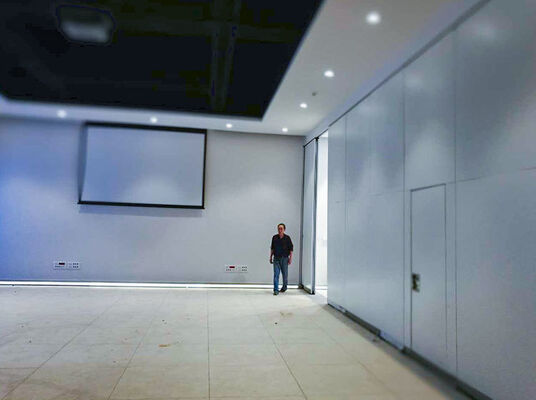

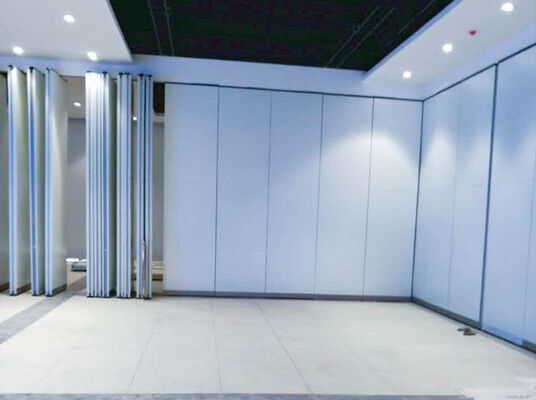

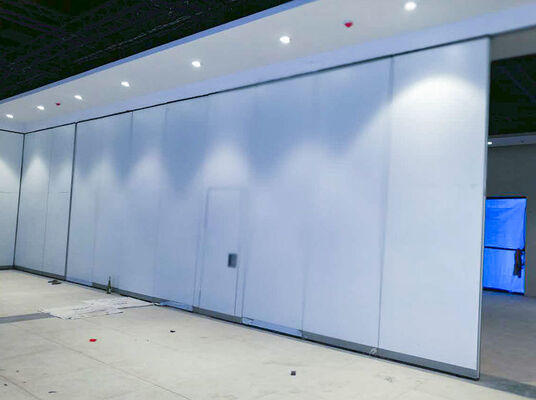

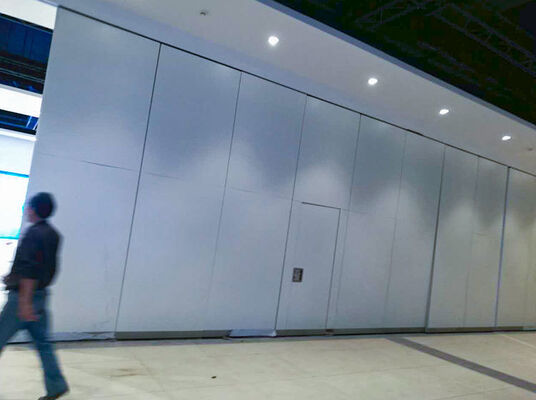

Project Examples
