Acoustic Banquet Hall Movable Partition Wall Divider Wooden Sliding Partition System

Brand Name:	AE
Model Number:	AE100
MOQ:	10 Square Meter
Price:	USD 80-108 Per Square Meter
Packaging Details:	foam layer and hard cardboard with plywood case or steel pallet
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001 SGS

Model:

Acoustic Partition Wall

Application:

Conference Room, Convention Center

Base Board:

Fireproof Board With Fabric

Dimensions:

Customization (Height: Up To 18M, Width Per Panel: Up To 1.2M)

Design:

OEM & ODM

Sound Insulation:

Max 56dB

Supply Ability:

1000 SQUARE METER PER MONTH

Highlight:

Acoustic Banquet Hall Partition Wall

Wooden Sliding Partition System

Product Description

Acoustic Banquet Hall Movable Partition Wall Divider Wooden Sliding Partition System

1.Create a serene and productive environment with our acoustic partition walls. Designed to minimize noise, these partitions are perfect for busy office settings.

2.Experience the ultimate in sound control with our acoustic partition walls. Ideal for studios, meeting rooms, and other spaces where acoustics matter, these walls ensure clear and crisp sound.

Advantages:

1.German Partition Technology Global Professional Space Solutions

2.Highly competitive prices

3.Good quality control

4.Smooth communication

5.state-of-art technology products

6.Effective OEM&ODM service

Roller Option & Feature

1. Dupont POM roller

2. 304 stainless steel heavy duty roller with safety device & CNC machining

3. Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Option & Feature

1. Thickness: 68mm & 89mm & 105mm

2. Wide variety of acoustical and decorative finishes available

3. 6061-T6 profile and inside Q235 steel frame for superior durability

4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.

SPECIFICATION:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
	Dimensions in mm*			Design
Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight

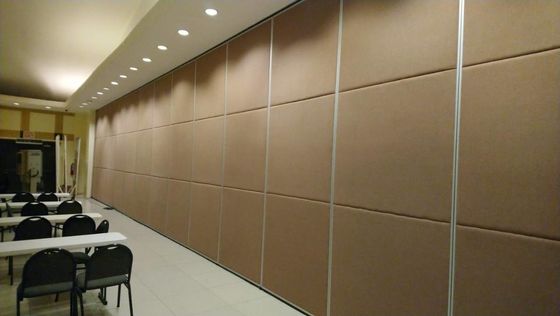

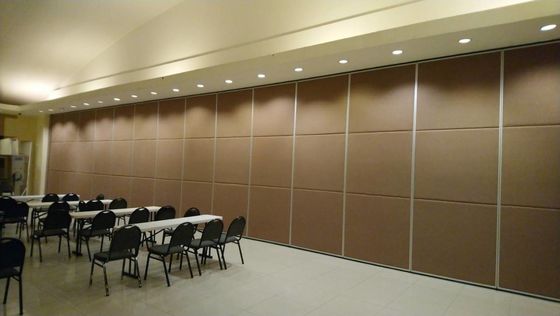

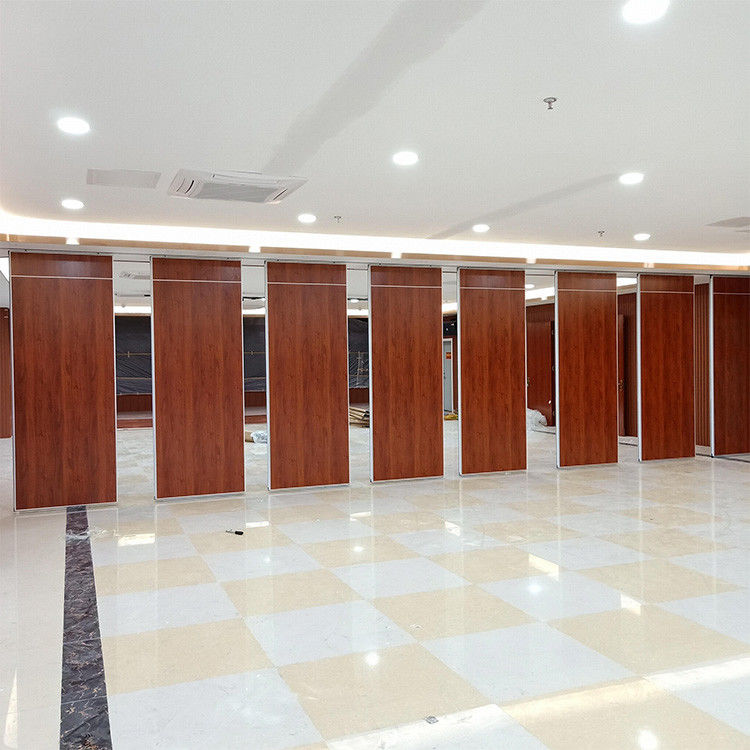

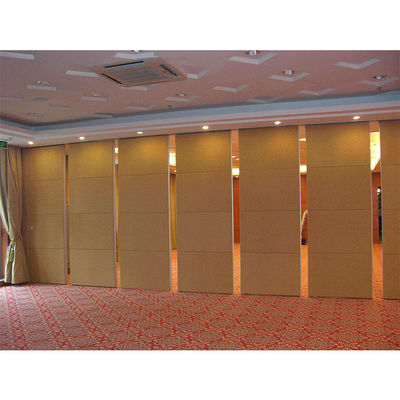

PROJECT:

Acoustic Banquet Hall Movable Partition Wall Divider Wooden Sliding Partition System 0

Acoustic Banquet Hall Movable Partition Wall Divider Wooden Sliding Partition System 1
