Acoustic Movable Folding Partition Wall Fireproofing Operable Wall Sliding Room Divider

Acoustic Movable Folding Partition Wall Fireproofing Operable Wall Sliding Room Divider

Brand Name: AE
Model Number: AE85
MOQ: 10 Square Meter
Price: USD80-108Per Square Meter
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SQUARE METER PER MONTH
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001 SGS
Product:
Movable Folding Partition Wall Fireproofing
Compliance:
Banquet Hall, Office Building
Base Board:
High Pressure Laminate Board
Dimensions:
Customization (Height: Up To 6M, Width Per Panel: Up To 1.2M)
Design:
OEM & ODM
Sound Insulation:
Max 56dB
Packaging Details:
foam layer and hard cardboard with plywood case or steel pallet
Highlight:

Acoustic Movable Folding Partition Wall

,

Movable Folding Partition Wall Fireproofing

,

Operable Wall Sliding Room Divider

Product Description

Wooden Acoustic Folding Movable Partition Fireproofing Operable Partition Dividers For Commercial Space

Our wooden acoustic folding partitions are the ideal solution for those seeking both form and function. They provide effective soundproofing and a sophisticated wooden finish, perfect for any environment.



Clients around the world rely on AE Partition for smart, efficient room management solutions. We offer a full spectrum of services, including the planning, design, and installation of movable partition wall systems. To ensure that our products stand the test of time, we also provide comprehensive services focused on maintaining their durability and performance.





We have full confidence in achieving your quality level, Hear are the brief introduction of our strenghts as follows:

1) German Partition Technology Global Professional Space Solutions

2) Highly competitive prices

3) Good quality control

4) Smooth communication

5) state-of-art technology products

6) Effective OEM&ODM service

7)Your inquiry related to our products or prices will be in 24 hours

8) Product specifications and value-engineered alternatives

9) Provide submittal drawings



Roller Option & Feature

1. Dupont POM roller

2. 304 stainless steel heavy duty roller with safety device & CNC machining

3. Unique and patented wheel surface and shape make the whole movable partition easy to use



Panel Option & Feature

1. Thickness: 68mm & 89mm & 105mm

2. Wide variety of acoustical and decorative finishes available

3. 6061-T6 profile and inside Q235 steel frame for superior durability

4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.



SPECIFICATION:



GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
  Dimensions in mm* Design
Series Element thickness Element width* (min./max.) Clear height* (min./max.) Framed construction Panel fixing Element interconnection/design of
the vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile
with magnetic strip
and sealing lips
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight

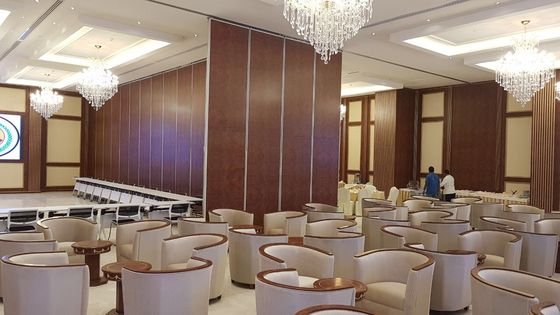

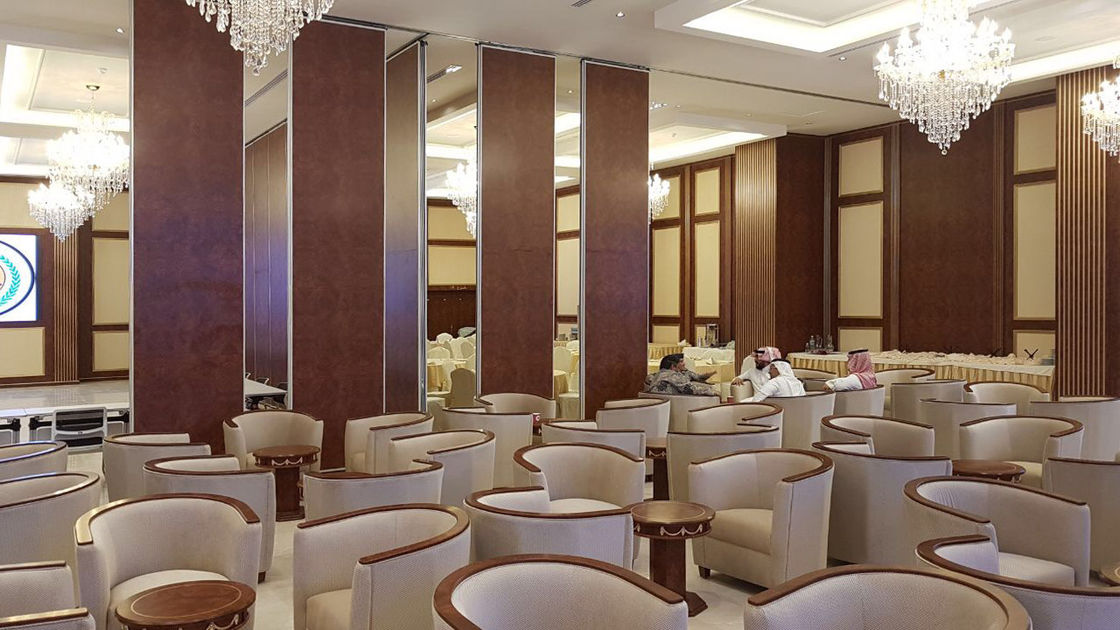

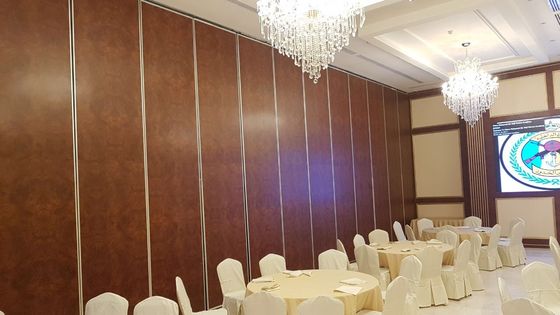

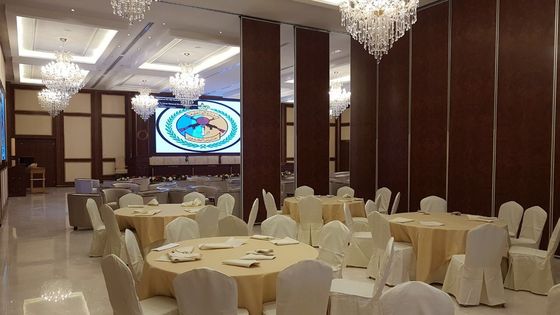

PROJECT:

Acoustic Movable Folding Partition Wall Fireproofing Operable Wall Sliding Room Divider 0



Acoustic Movable Folding Partition Wall Fireproofing Operable Wall Sliding Room Divider 1



ABOUT US:

Acoustic Movable Folding Partition Wall Fireproofing Operable Wall Sliding Room Divider 2



Acoustic Movable Folding Partition Wall Fireproofing Operable Wall Sliding Room Divider 3





Acoustic Movable Folding Partition Wall Fireproofing Operable Wall Sliding Room Divider 4
