Office Aluminium Framed Glass Partition / Restaurant Panoramic Glass Partition

Office Aluminium Framed Glass Partition / Restaurant Panoramic Glass Partition

Brand Name: AE
Model Number: Panoramic system EGG-100C
MOQ: 10 Square Meter
Price: USD69-92Per Square Meter
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SQUARE METER PER MONTH
Detail Information
Place of Origin:
Guangdong, CHINA
Certification:
ISO9001 SGS
Product Name:
Panoramic Glass Partition
Application:
Office,Commercial Building And Residential House,apartment,Restaurant,etc.
Production Standard:
Basis On The Shop Drawings Which Approved By The Buyer
Profile Of Hanging Partition:
Aluminum Alloy, PVC Strip Sound Proof Partition Walls
Glass Of Hanging Partition:
Clear Tempered Glass, Frosted Glass, Acid Etched Glass
Design:
OEM & ODM
Sound Insulation:
30-42dB
Packaging Details:
foam layer and hard cardboard with plywood case
Highlight:

Office Aluminium Framed Glass Partition

,

Restaurant Panoramic Glass Partition

,

Panoramic Glass Partition Aluminium Frame

Product Description

Installation Useful Well Done Aluminum Frame Glass Partition Wall For Panoramic


In today’s design landscape, minimalism and modern aesthetics take center stage, and our aluminum frame glass partition walls embody this trend perfectly. Combining sleek, durable aluminum frames with high-transparency glass, these partitions offer both functionality and style. They effectively divide spaces while maintaining an open, airy feel.

Ideal for offices, commercial spaces, and home environments, our glass partition walls enhance the modern and spacious ambiance of any setting. Whether used to create meeting rooms in an office or define functional areas in a home, they provide an elegant solution for achieving a refined and comfortable space.

Choose our aluminum frame glass partition walls for a sophisticated and practical space upgrade, and turn your design vision into reality.


useful well done:

1. Details and aluminum frame around the glass partition wall

(1). Sizes are produced as per customer request. Once tempered, it can not be cut down.

(2). Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to the human body.

(3). The aluminum frame around can be segmented according to the actual height

(4). It withstands the abrupt temperature change of 220 Centigrade.

(5). 5 times harder than ordinary float glass, stronger resistance to thermal breakage than annealed or heat strengthened glass.


Specification:



Technical characieristics

WALL THICKNESS
108mm/90mm
HEIGHT up to 3000mm
GRID WIDTH up to 1200mm
WEIGHT 70-80kg/sq.m
ATTACHMENT TO BUILDING STRUCTURE Concealed connections to the slab and walls; sealing along the perimeter; deviations ±10mm in height and width
GLASS THICKNESS 10mm/12mm tempered
VISIBILITY Transparent, coloured, matte glass; between-the-glass blinds; foil, screen printing, enamel
DESCRIPTION Glazed partition with an in-plane streamlined look. Made from aluminium, double-glazing structurally adhered to the profiles.

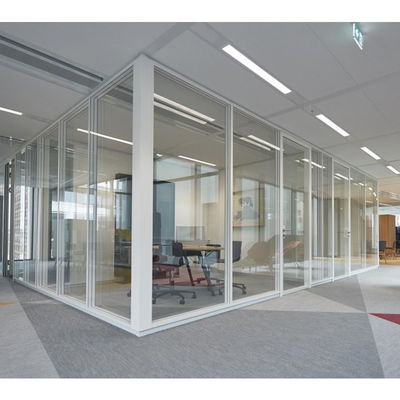

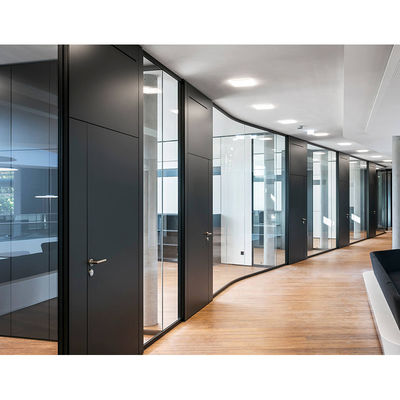

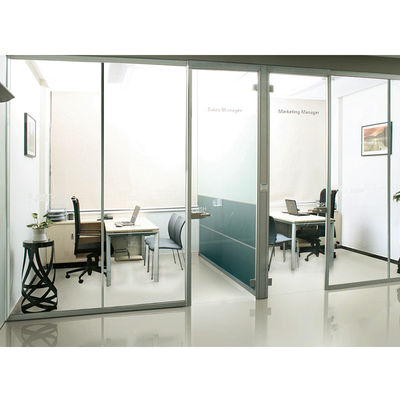

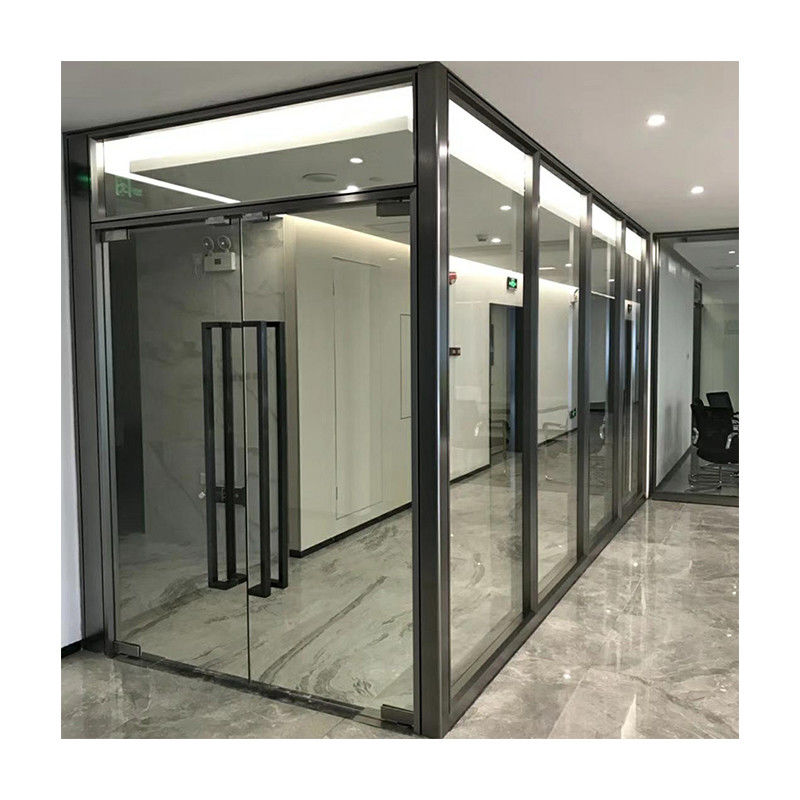

Project:



Office Aluminium Framed Glass Partition / Restaurant Panoramic Glass Partition 0Office Aluminium Framed Glass Partition / Restaurant Panoramic Glass Partition 1


Our Services:
Office Aluminium Framed Glass Partition / Restaurant Panoramic Glass Partition 2Office Aluminium Framed Glass Partition / Restaurant Panoramic Glass Partition 3
