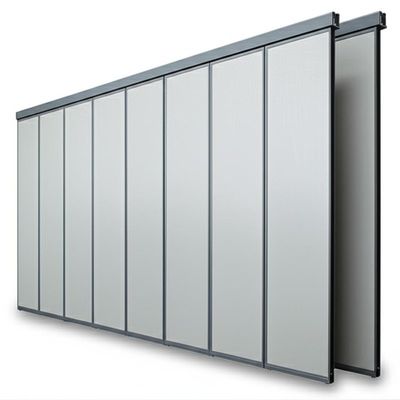

No Floor Track Acoustic Partition Wall with Q235 Steel Frame and Up to 18M Height for Conference Halls

Brand Name:	AE
Model Number:	AE100
MOQ:	10 Square Meter
Price:	USD 80-108 Per Square Meter
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001 SGS

Product Name:

Acoustic Partition Wall

Application:

Conference Hall Partitions

Finishing Option:

Customer-supplied Materials

Height:

Up To18M

Design:

OEM & ODM

Sound Insulation:

Max 56dB

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

No Floor Track Acoustic Partition Wall

Q235 Steel Frame Partition Wall

18M Height Soundproof Partition Wall

Product Description

Sound Proof Insulation Acoustic Partition Wall Operable For Conference Hall

Our high-performance acoustic partition walls provide superior sound insulation for conference halls and professional spaces, combining functionality with aesthetic flexibility.

Key Features

No Floor Track: Ceiling-mounted design eliminates tripping hazards and debris accumulation with optional integrated acoustic bottom seal.
Unlimited Customization: Choose from vinyl, fabric, carpet, veneer, high-pressure laminates, frescoes, or custom surfaces with MDF finish options.
Durable Construction: Robust aluminum frame available in heights from 2-15 meters with four thickness options for maximum rigidity.

Roller Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface design for smooth operation

Panel Features

Thickness options: 68mm, 89mm, 105mm
Multiple acoustical and decorative finishes available
6061-T6 profile with Q235 steel frame for enhanced durability
Top & bottom jack lifting mechanism with 800N power
Magnetic seal with 40N/m attraction in concave & convex profile

Specifications

Series	Element Thickness (mm)	Element Width (mm)	Clear Height (mm)	Construction
AE65	68	600-1,250	2,000-4,500	Aluminium-steel
AE85	89	600-1,250	2,000-5,500	Aluminium-steel
AE100	105	600-1,250	2,000-18,000	Aluminium-steel

Technology: Weighted sound reduction value (Rw) 52/56 dB (GB/T19889.3-2005)
Connection System: Convex-concave profile with magnetic strip (40 N/m attraction)
* Larger widths available upon request. Final dimensions subject to Design Department approval.
