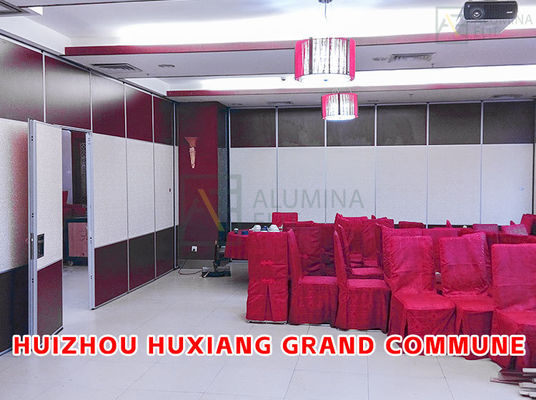

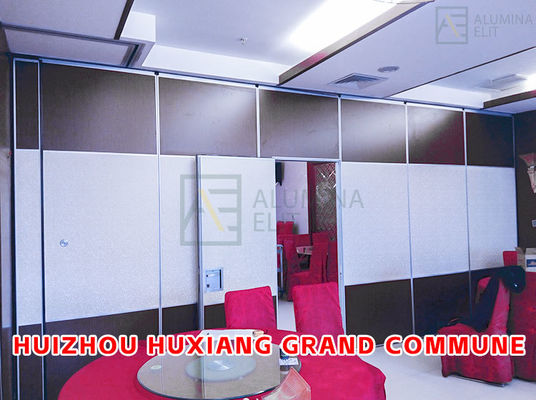

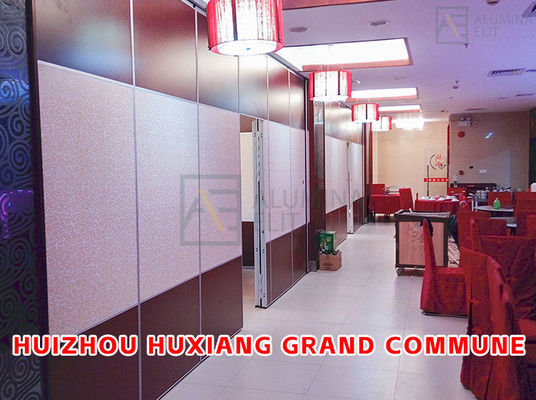

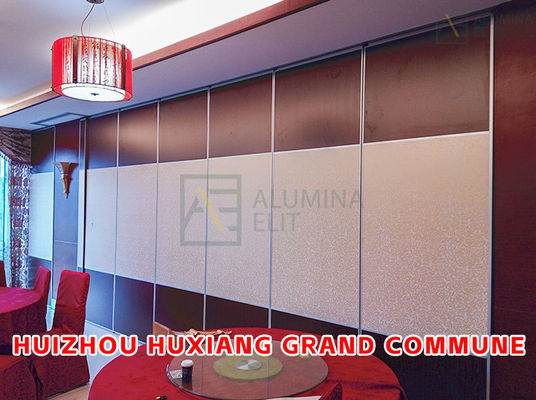

Huizhou Huxiang Grand Commune：Acoustic Partition Wall with 56dB Sound Insulation, Up to 18M Height, and 6061-T6 Profile for Banquet Halls（For commercial use）

Brand Name:	AE
Model Number:	AE100
MOQ:	10 Square Meter
Price:	USD 80-108 Per Square Meter
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001 SGS

Product Name:

Banquet Hall Partition Wall

Application:

Banquet Hall Partitions

Finishing Option:

Customer-supplied Materials

Height:

Up To18M

Design:

OEM & ODM

Sound Insulation:

Max 56dB

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

56dB Sound Insulation Acoustic Partition Wall

18M Height Operable Partition Wall

6061-T6 Profile Banquet Hall Partition Wall

Product Description

Banquet Hall Removable Operable Acoustic Partition Wall For Hotel

Transform your space effortlessly with our versatile acoustic partition walls. These innovative solutions enable you to convert two rooms into a single expansive area using a simple folding screen. Ideal for environments where floor space is valuable, our partitions allow a large meeting room to be divided into three smaller areas for daily use.

Our acoustic partition walls are designed for ease of use and come with an optional powered operation for added convenience. They provide excellent sound insulation between rooms while allowing quick and smooth reconfiguration of the space. Choose from various finishes including Melamines, Veneers, and writable wall panels to complement your interior decor.

Key Features:

Top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Extensive range of surface finishes available
Various levels of sound reduction available
Combines elegance with robust construction
Customization options available

Roller Options:

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface and shape for easy operation

Panel Options:

Thickness: 68mm, 89mm & 105mm
Wide variety of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal with 40N/m attraction

Technical Specifications

Series	Element Thickness (mm)	Element Width (min/max)	Clear Height (min/max)	Construction	Panel Fixing	Vertical Profile Design
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

* Larger widths possible on application. Provisional details regarding the element heights/widths indicated can only be confirmed following consultation with the Design Department.

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56. Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m.
