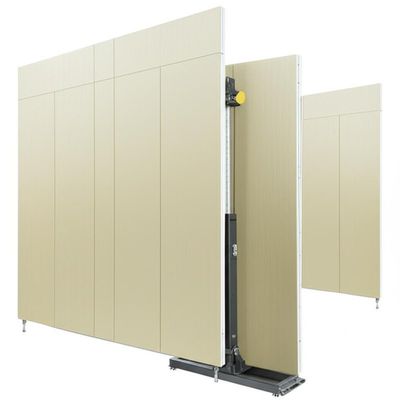

OEM ODM Sound Insulation Partition Wall with 800N Jack Lifting Mechanism and 40N/m Magnetic Attraction in Melamine Finish

Brand Name:	AE
Model Number:	AE100
MOQ:	10 Square Meter
Price:	USD 80-108 Per Square Meter
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001 SGS

Name:

Sound Insulation Partition Wall

Sound Insulation:

Max 56dB

Feature:

Sound Insulation

Finish:

Melamine

Finishing Option:

Customer-supplied Materials

Height:

Up To18M

Design:

OEM & ODM

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

800N Jack Lifting Mechanism Sound Insulation Partition Wall

40N/m Magnetic Attraction Movable Partition Wall

Melamine Finish Acoustic Partition Wall

Product Description

Operable Sliding Acoustic Partition Wall For Classroom 105mm Thickness

AE Acoustic Partition Walls are ideal for projects requiring precise space delineation. Their flexibility and cost-effectiveness make them perfect for subdividing large rooms and enhancing space utilization. Common applications include:

Office environments and meeting rooms
Sports and leisure facilities
Educational institutions
Places of worship
Conference and function suites
Exhibition centers, banks, and restaurants

Key Features

Soundproof connection between elements with interlocking male/female trapezoidal vertical aluminum profiles
Integrated magnetic strip for additional friction connection
Easy element adjustment after installation
Maintenance-free extruded aluminum track system with heavy-duty ball bearing steel rollers
Customized support available

Roller Options & Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface and shape for easy operation

Panel Options & Features

Available thicknesses: 68mm, 89mm, 105mm
Wide variety of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal in concave & convex profile with 40N/m magnetic attraction

Technical Specifications

Series	Element Thickness (mm)	Element Width (min/max mm)	Clear Height (min/max mm)	Framed Construction	Panel Fixing	Element Interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Connection: Positive and frictional locking with convex-concave profile form, magnetic strip attraction force of 40 N/m
* Larger widths possible on application. Provisional details regarding element heights/widths require consultation with Design Department.
