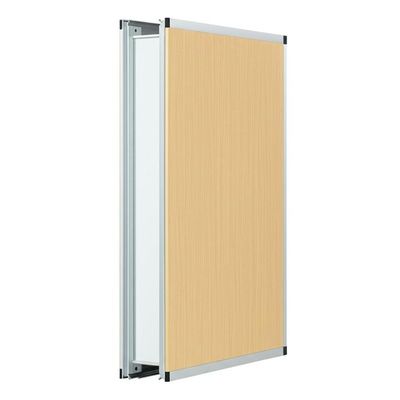

Fireproofing Acoustic Partition Wall with 6061-T6 Aluminum Alloy Frame and High Pressure Laminate Board

Brand Name:	AE
Model Number:	AE85
MOQ:	10 Square Meter
Price:	USD80-108Per Square Meter
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001 SGS

Product:

Movable Folding Partition Wall Fireproofing

Compliance:

Banquet Hall, Office Building

Base Board:

High Pressure Laminate Board

Dimensions:

Customization (Height: Up To 6M, Width Per Panel: Up To 1.2M)

Design:

OEM & ODM

Sound Insulation:

Max 56dB

Packaging Details:

foam layer and hard cardboard with plywood case or steel pallet

Highlight:

Fireproofing Acoustic Partition Wall

6061-T6 Aluminum Alloy Frame Partition Wall

High Pressure Laminate Board Partition Wall

Product Description

Wooden Acoustic Folding Movable Partition Fireproofing Operable Partition Dividers

Our wooden acoustic folding partitions provide effective soundproofing with a sophisticated wooden finish, ideal for commercial spaces. AE Partition offers comprehensive solutions including planning, design, installation, and maintenance of movable partition wall systems.

Our Strengths

German Partition Technology Global Professional Space Solutions
Highly competitive prices
Good quality control
Smooth communication
State-of-art technology products
Effective OEM&ODM service
24-hour response to inquiries
Product specifications and value-engineered alternatives
Submittal drawings provided

Roller Options & Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface and shape for easy operation

Panel Options & Features

Thickness: 68mm, 89mm & 105mm
Wide variety of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for durability
Top & bottom jack lifting mechanism seal (800N power)
Magnetic seal in concave & convex profile (40N/m attraction)

Specifications

Series	Element thickness (mm)	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

* Larger widths possible on application. Provisional details regarding the element heights/widths indicated can only be confirmed following consultation with the Design Department.

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56. Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m.
