Single Type Aluminum Frame Glass Partition Wall For Panoramic System

Brand Name:	AE
Model Number:	Panoramic system EGG-100C
MOQ:	10 Square Meter
Price:	USD69-92Per Square Meter
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 SQUARE METER PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, CHINA

Certification:

ISO9001 SGS

Product Name:

Single Glass Partition

Application:

Office,Commercial Building And Residential House,apartment

Production Standard:

Basis On The Shop Drawings Which Approved By The Buyer

Profile Of Hanging Partition:

Aluminum Alloy, PVC Strip Sound Proof Partition Walls

Glass Of Hanging Partition:

Clear Tempered Glass, Frosted Glass, Acid Etched Glass

Design:

OEM & ODM

Sound Insulation:

30-42dB

Packaging Details:

foam layer and hard cardboard with plywood case

Highlight:

Single Type Aluminum Frame Glass Partition

SGS Aluminum Frame Glass Partition

Single Glass Partition Aluminium Frame

Product Description

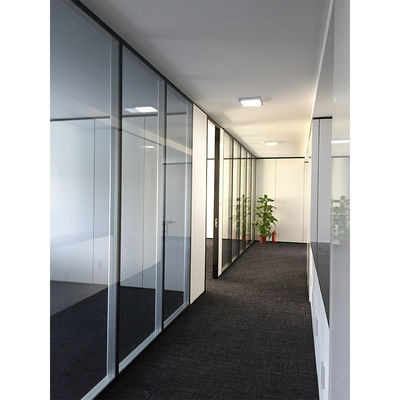

Single Types Aluminum Frame Glass Partition Wall For Panoramic system

Introducing our Single Types Aluminum Frame Glass Partition Wall—where elegance meets functionality in the panoramic system. Designed to maximize your space while offering a sleek and modern aesthetic, this partition wall features high-quality aluminum framing and clear, durable glass panels. Perfect for both residential and commercial settings, it provides unobstructed views and natural light flow, enhancing the openness of any room. Whether you're looking to create a sophisticated office environment or a stylish home interior, our glass partition walls are the ideal solution for achieving a contemporary and airy ambiance. Transform your space with a touch of modern luxury and versatility today!

Key Features of Our Aluminum Frame Glass Partition Wall

Customizable Sizes: Our glass partition walls are tailored to your specifications. Please note that once tempered, the glass cannot be resized.

Safety First: In the event of breakage, the tempered glass shatters into small, cubical fragments that are relatively safe and pose minimal risk to individuals.

Versatile Aluminum Framing: The aluminum frame is adaptable and can be segmented to match the specific height requirements of your space.

Temperature Resilience: The glass withstands abrupt temperature changes up to 220°C, ensuring durability and performance under varying conditions.

Enhanced Strength: Our partition walls are five times tougher than standard float glass, offering superior resistance to thermal breakage compared to annealed or heat-strengthened glass.

These features make our aluminum frame glass partition walls an excellent choice for creating modern, safe, and resilient spaces.

Specification:

Technical characieristics
WALL THICKNESS	108mm/90mm
HEIGHT	up to 3000mm
GRID WIDTH	up to 1200mm
WEIGHT	70-80kg/sq.m
ATTACHMENT TO BUILDING STRUCTURE	Concealed connections to the slab and walls; sealing along the perimeter; deviations ±10mm in height and width
GLASS THICKNESS	10mm/12mm tempered
VISIBILITY	Transparent, coloured, matte glass; between-the-glass blinds; foil, screen printing, enamel
DESCRIPTION	Glazed partition with an in-plane streamlined look. Made from aluminium, double-glazing structurally adhered to the profiles.
