Aluminum Frame Glass Partition
Created with Pixso.

Restaurant Acoustic Aluminum Frame Glass Partition Wall For Panoramic

Restaurant Acoustic Aluminum Frame Glass Partition Wall For Panoramic

Brand Name: AE
Model Number: Panoramic system EGG-100C
MOQ: 10 Square Meter
Price: USD69-92Per Square Meter
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SQUARE METER PER MONTH
Detail Information
Place of Origin:
Guangdong, CHINA
Certification:
ISO9001 SGS
Product Name:
Panoramic Glass Partition System
Application:
Restaurant,Office , Hall .meeting Room
Production Standard:
Basis On The Shop Drawings Which Approved By The Buyer
Profile Of Hanging Partition:
Aluminum Alloy, PVC Strip Sound Proof Partition Walls
Glass Of Hanging Partition:
Clear Tempered Glass, Frosted Glass, Acid Etched Glass
Design:
OEM & ODM
Sound Insulation:
30-42dB
Packaging Details:
foam layer and hard cardboard with plywood case
Highlight:

Restaurant Aluminum Frame Glass Partition

,

Acoustic Aluminum Frame Glass Partition

,

Restaurant Glass Partition Wall

Product Description

Restaurant Acoustic Aluminum Frame Glass Partition Wall For Panoramic


Elevate your restaurant’s ambiance with our acoustic aluminum frame glass partition walls, designed specifically for panoramic views. These partitions combine sleek aluminum framing with sound-dampening glass panels to create a sophisticated, noise-controlled dining experience. Ideal for modern restaurants, they offer an elegant solution for defining spaces while maintaining an open, airy atmosphere. Enhance your guests' comfort and your restaurant’s aesthetic with partitions that provide both style and exceptional acoustic performance.


Operation:

Our partitions are engineered to be top-supported and manually operated, with panels neatly stacked in a designated area as specified in your plans. When fully closed, these operable walls deliver a comprehensive soundproof barrier, ensuring effective noise reduction and privacy. The design eliminates the need for floor tracks, creating a streamlined and modern look. Ideal for versatile spaces that require both functionality and aesthetic appeal, our partitions offer an innovative solution for seamless and noise-controlled environments.


Specification:



Technical characieristics

WALL THICKNESS
108mm/90mm
HEIGHT up to 3000mm
GRID WIDTH up to 1200mm
WEIGHT 70-80kg/sq.m
ATTACHMENT TO BUILDING STRUCTURE Concealed connections to the slab and walls; sealing along the perimeter; deviations ±10mm in height and width
GLASS THICKNESS 10mm/12mm tempered
VISIBILITY Transparent, coloured, matte glass; between-the-glass blinds; foil, screen printing, enamel
DESCRIPTION Glazed partition with an in-plane streamlined look. Made from aluminium, double-glazing structurally adhered to the profiles.



Project:

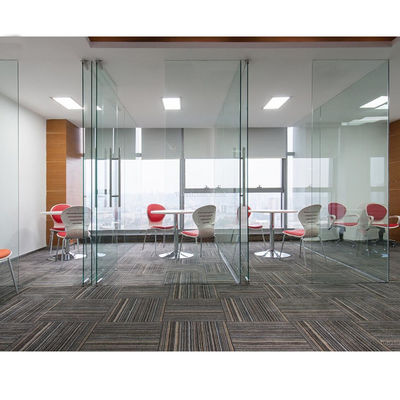

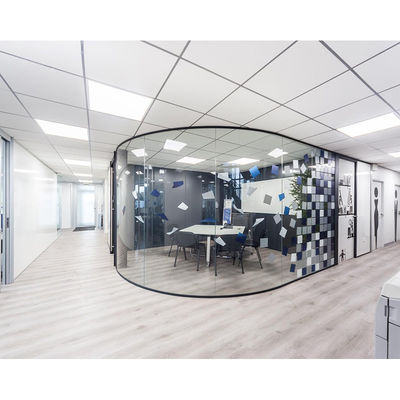

Restaurant Acoustic Aluminum Frame Glass Partition Wall For Panoramic 0Restaurant Acoustic Aluminum Frame Glass Partition Wall For Panoramic 1


Our Services:

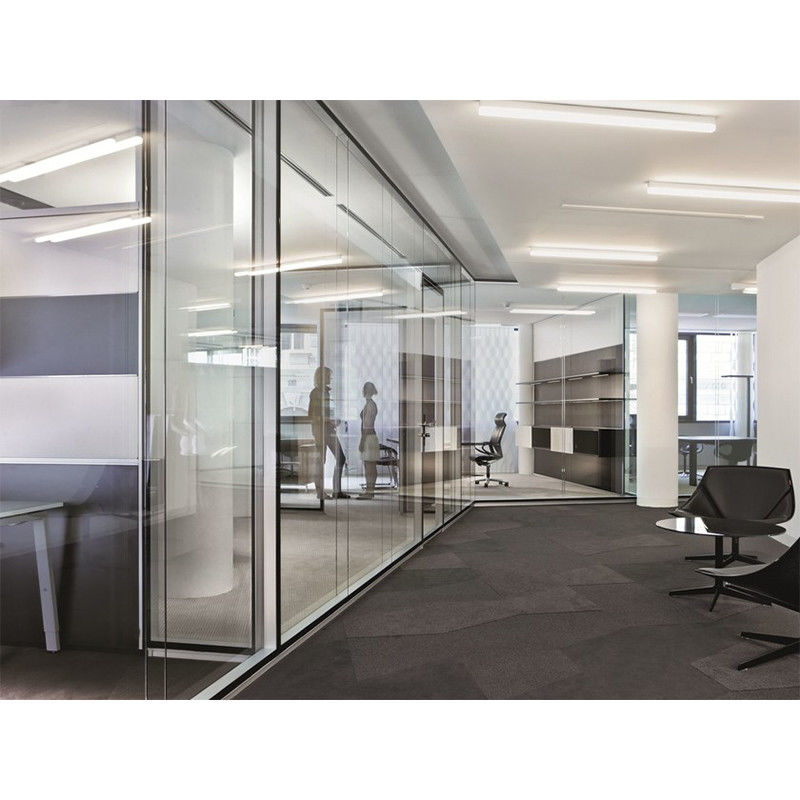

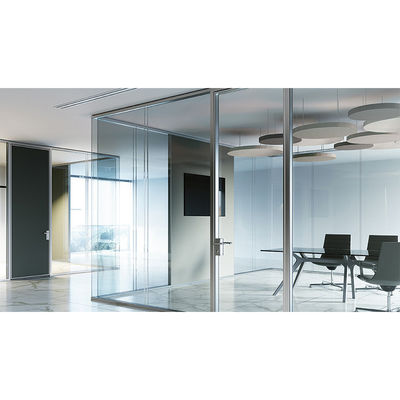

Restaurant Acoustic Aluminum Frame Glass Partition Wall For Panoramic 2Restaurant Acoustic Aluminum Frame Glass Partition Wall For Panoramic 3
