Aluminum Frame Glass Partition
Created with Pixso.

Tempered Sliding Aluminum Frame Glass Partition Wall For Office Project Walls

Tempered Sliding Aluminum Frame Glass Partition Wall For Office Project Walls

Brand Name: AE
Model Number: Panoramic system EGG-100C
MOQ: 10 Square Meter
Price: USD69-92Per Square Meter
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SQUARE METER PER MONTH
Detail Information
Place of Origin:
Guangdong, CHINA
Certification:
ISO9001 SGS
Product Name:
Sliding Glass Partition Wall
Application:
Apartment, Office Building,Living Room
Production Standard:
Basis On The Shop Drawings Which Approved By The Buyer
Profile Of Hanging Partition:
Aluminum Alloy, PVC Strip Sound Proof Partition Walls
Glass Of Hanging Partition:
Clear Tempered Glass, Frosted Glass, Acid Etched Glass
Design:
OEM & ODM
Sound Insulation:
30-42dB
Packaging Details:
foam layer and hard cardboard with plywood case
Highlight:

Tempered Sliding Aluminum Frame Glass Partition

,

Tempered Sliding Glass Divider Wall

,

Office Aluminum Frame Glass Partition

Product Description

Tempered Sliding Aluminum Frame Glass Partition Wall For Office Project Walls


Transform your office space with our sophisticated tempered sliding aluminum frame glass partition wall system. Expertly designed for modern work environments, this partition offers a seamless blend of style and functionality. The tempered glass ensures durability and safety, while the sliding mechanism provides flexible space management and easy access. The sleek aluminum frame not only adds a contemporary touch but also ensures robust support and stability. Ideal for creating dynamic workspaces or elegant conference rooms, our partition walls enhance both aesthetics and efficiency. Elevate your office project with a solution that combines modern design with practical performance.


FAQ



(1).What you should do on-site?


A beam(truss) should be built on-site for track installation. The min distance leaving for track installation from a false ceiling to top ceiling is 200mm.


(2.)How to install?


We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.


(3).What is the lead time?


The lead time is 7 days to 10 days.


Specification:



Technical characieristics

WALL THICKNESS
108mm/90mm
HEIGHT up to 3000mm
GRID WIDTH up to 1200mm
WEIGHT 70-80kg/sq.m
ATTACHMENT TO BUILDING STRUCTURE Concealed connections to the slab and walls; sealing along the perimeter; deviations ±10mm in height and width
GLASS THICKNESS 10mm/12mm tempered
VISIBILITY Transparent, coloured, matte glass; between-the-glass blinds; foil, screen printing, enamel
DESCRIPTION Glazed partition with an in-plane streamlined look. Made from aluminium, double-glazing structurally adhered to the profiles.



Project:

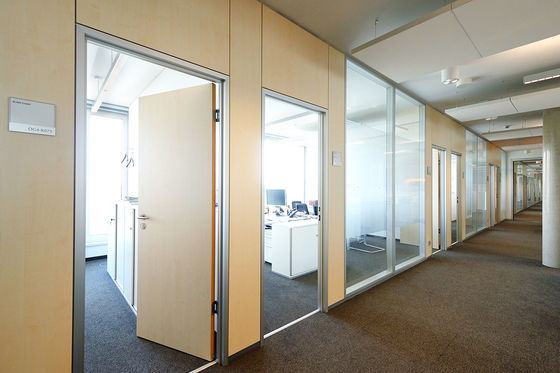

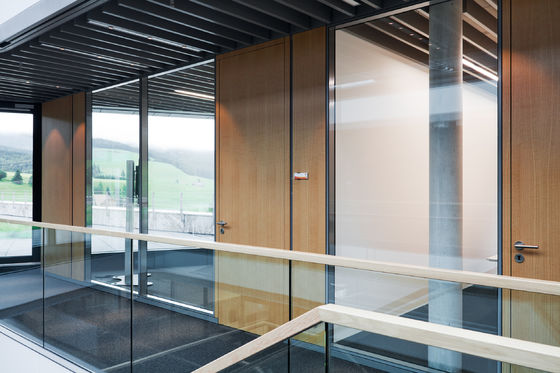

Tempered Sliding Aluminum Frame Glass Partition Wall For Office Project Walls 0Tempered Sliding Aluminum Frame Glass Partition Wall For Office Project Walls 1


Our Services:

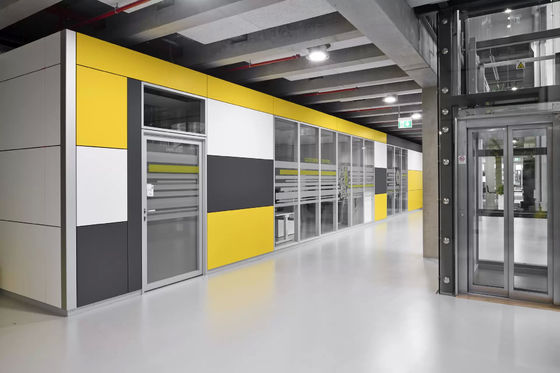

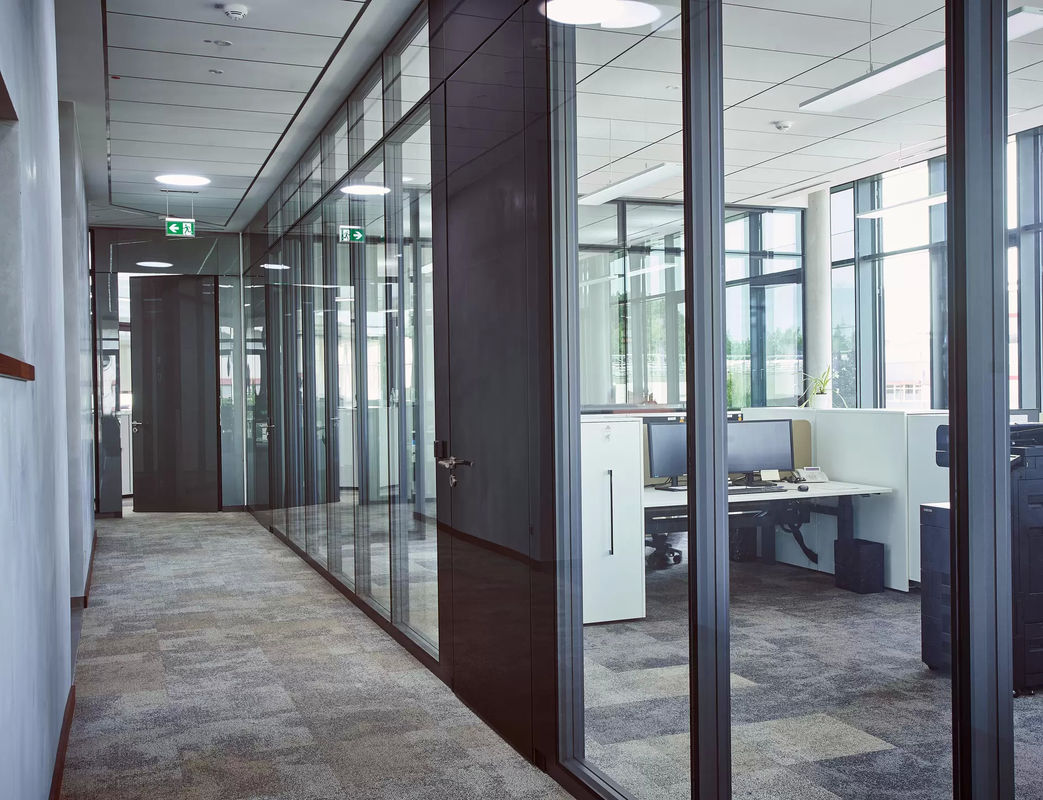

Tempered Sliding Aluminum Frame Glass Partition Wall For Office Project Walls 2Tempered Sliding Aluminum Frame Glass Partition Wall For Office Project Walls 3
